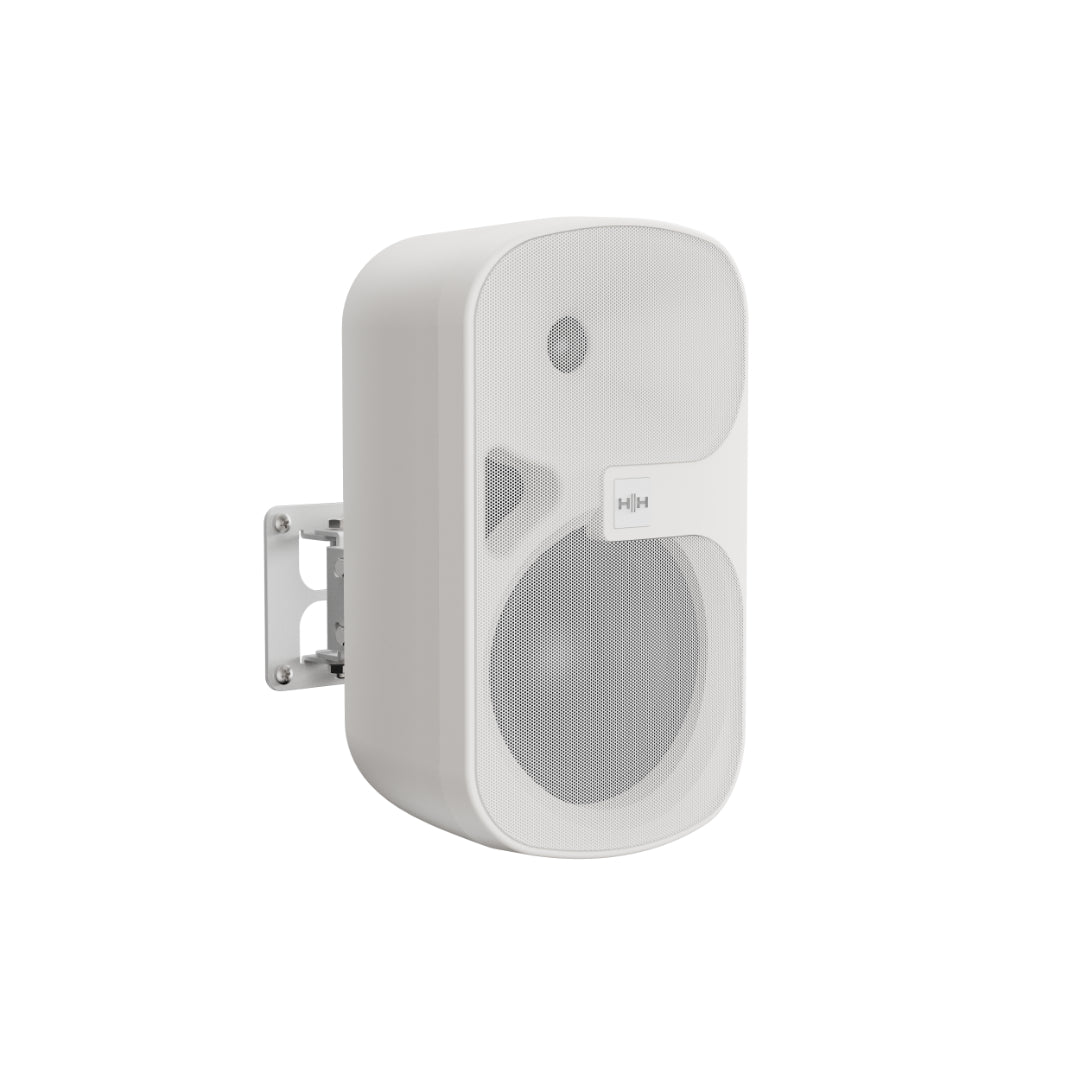

HH Electronics TNi-W6-WH HH TESSEN INSTALL - TNi-W6-WH - 6.5 inch wall-mount speaker - mounting bracket - 70/100V - WHITE

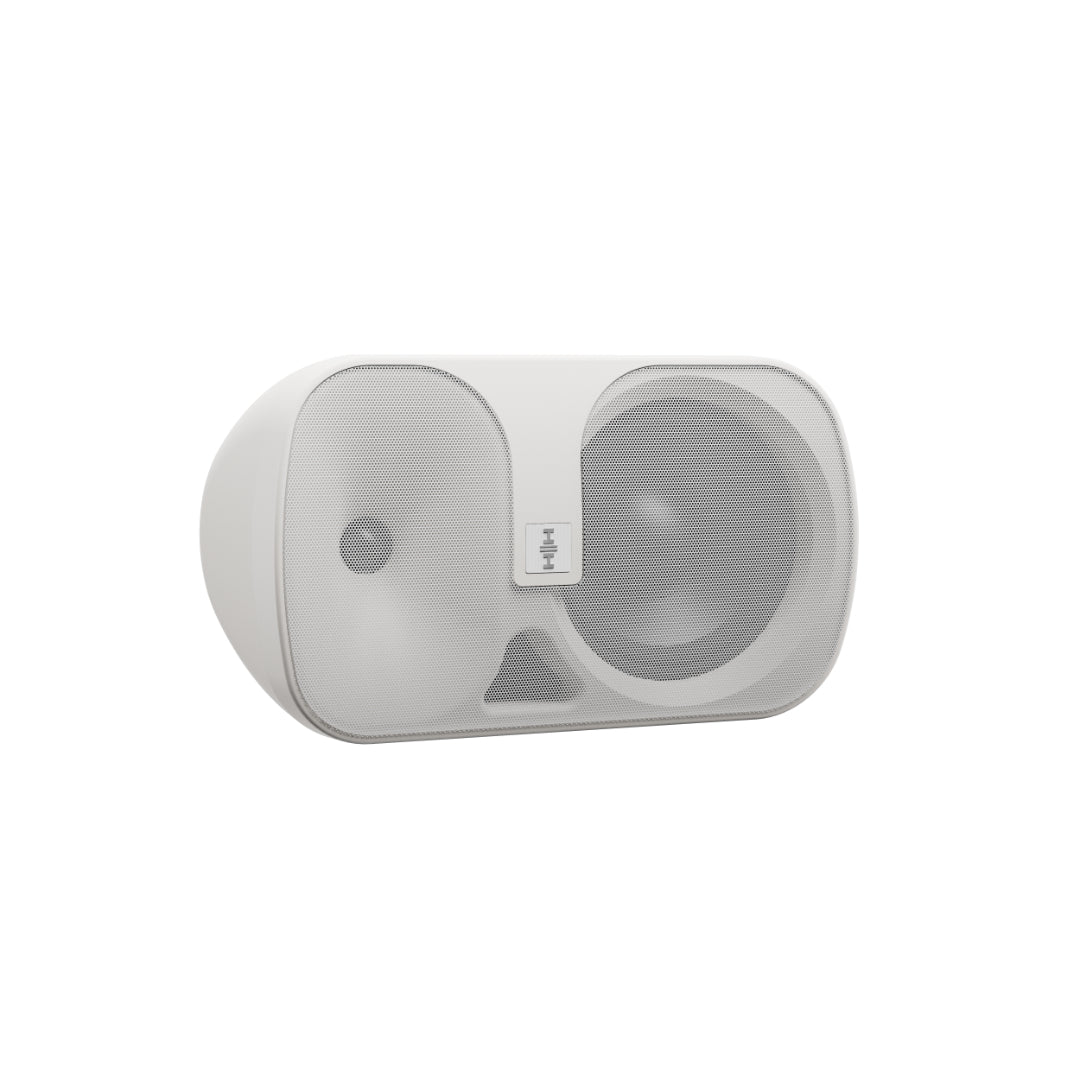

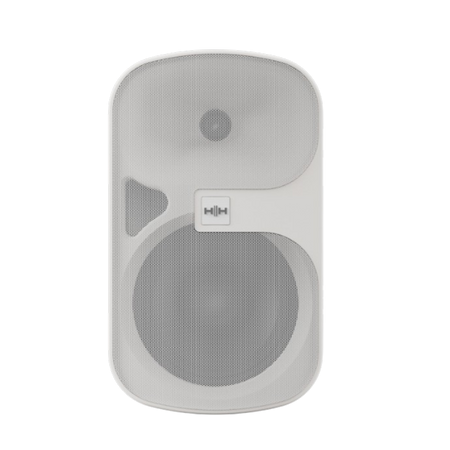

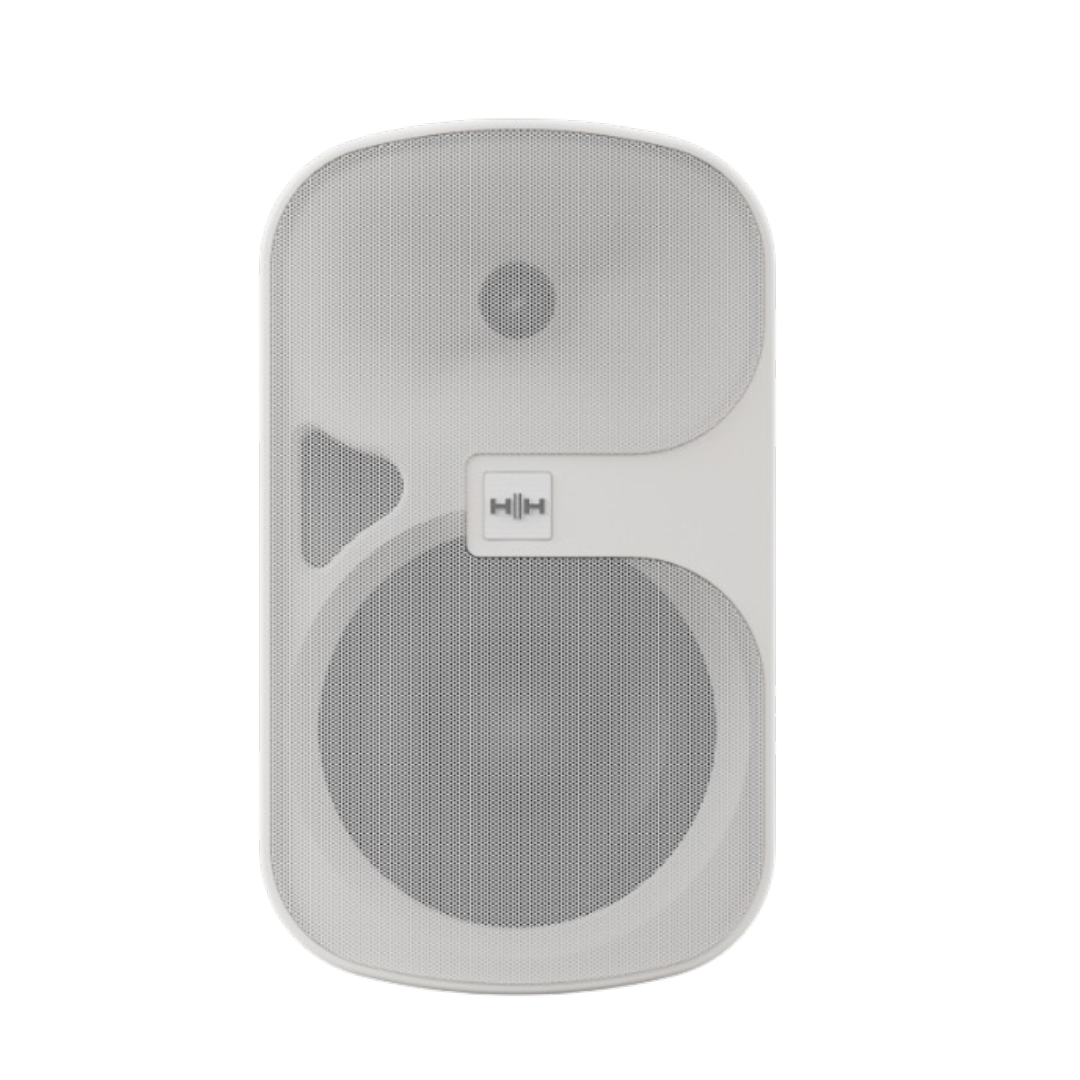

CUSTOM HH-DESIGNED DRIVERS — Equipped with a 6.5-inch HH-designed LF driver and a 1-inch dome HF driver, delivering c...
Read More
Couldn't load pickup availability
CUSTOM HH-DESIGNED DRIVERS — Equipped with a 6.5-inch HH-designed LF driver and a 1-inch dome HF driver, delivering clear, balanced audio across a wide frequency range.
FLEXIBLE POWER OPTIONS — Supports 100V line tapping at 40W, 20W, 10W, and 5W, plus 70V line tapping at 20W, 10W, 5W, and 2.5W for versatile installation compatibility.
WIDE DISPERSION COVERAGE — A 90° horizontal by 80° vertical dispersion angle ensures broad, even sound coverage across retail spaces, venues, and commercial environments.
HIGH OUTPUT PERFORMANCE — Delivers a maximum SPL of 113dB with a power rating of 45W AES and 130W Peak, providing strong, reliable output for demanding installation settings.

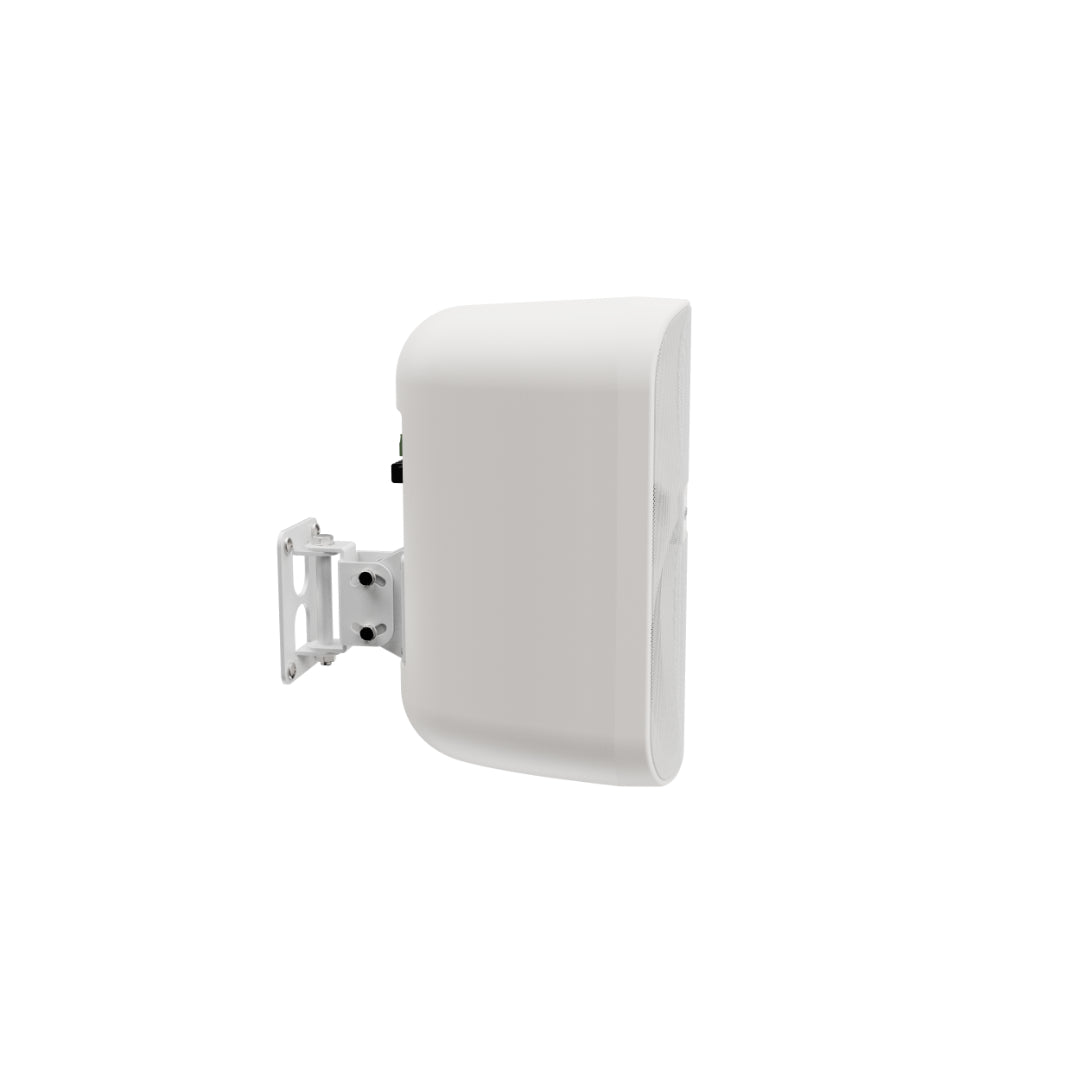

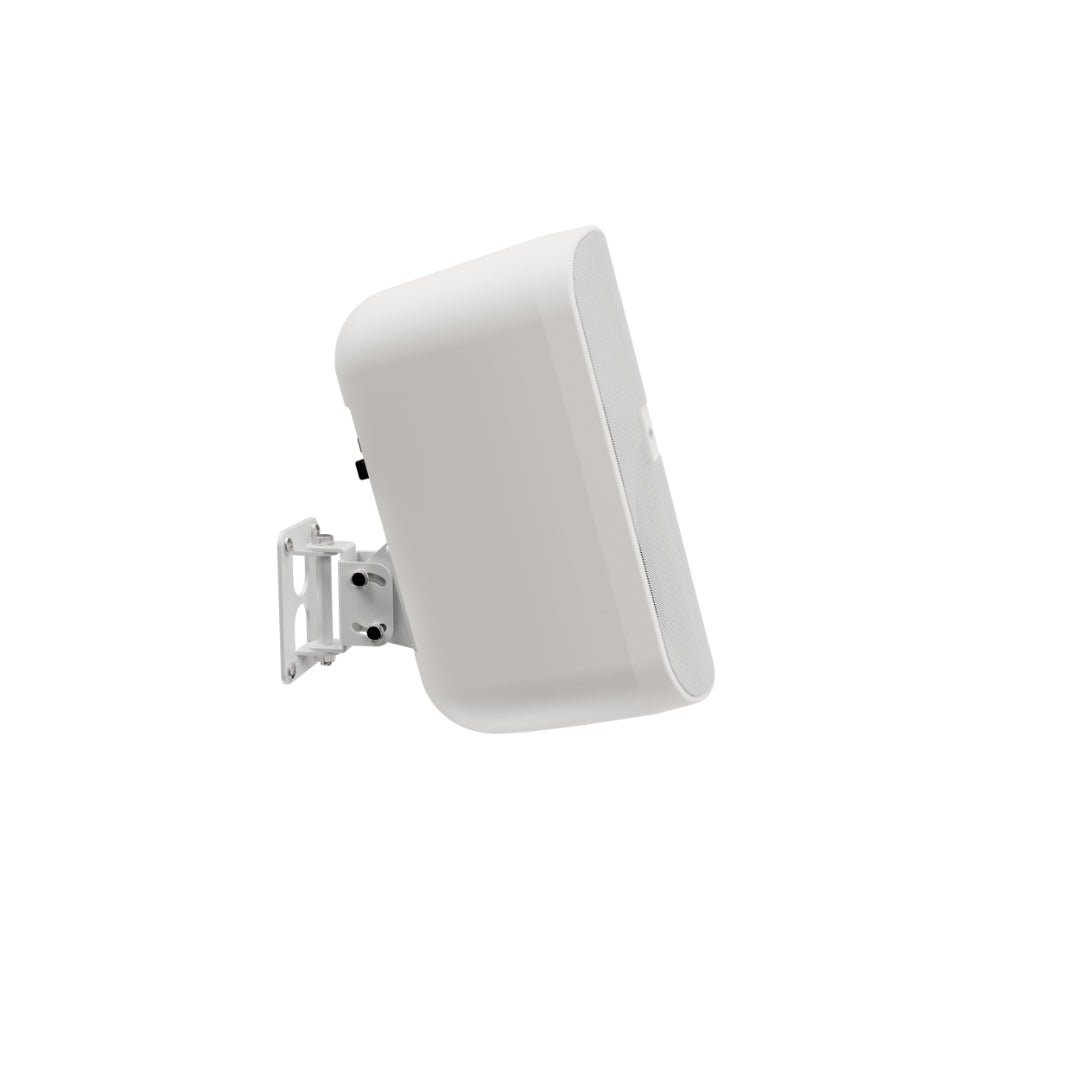

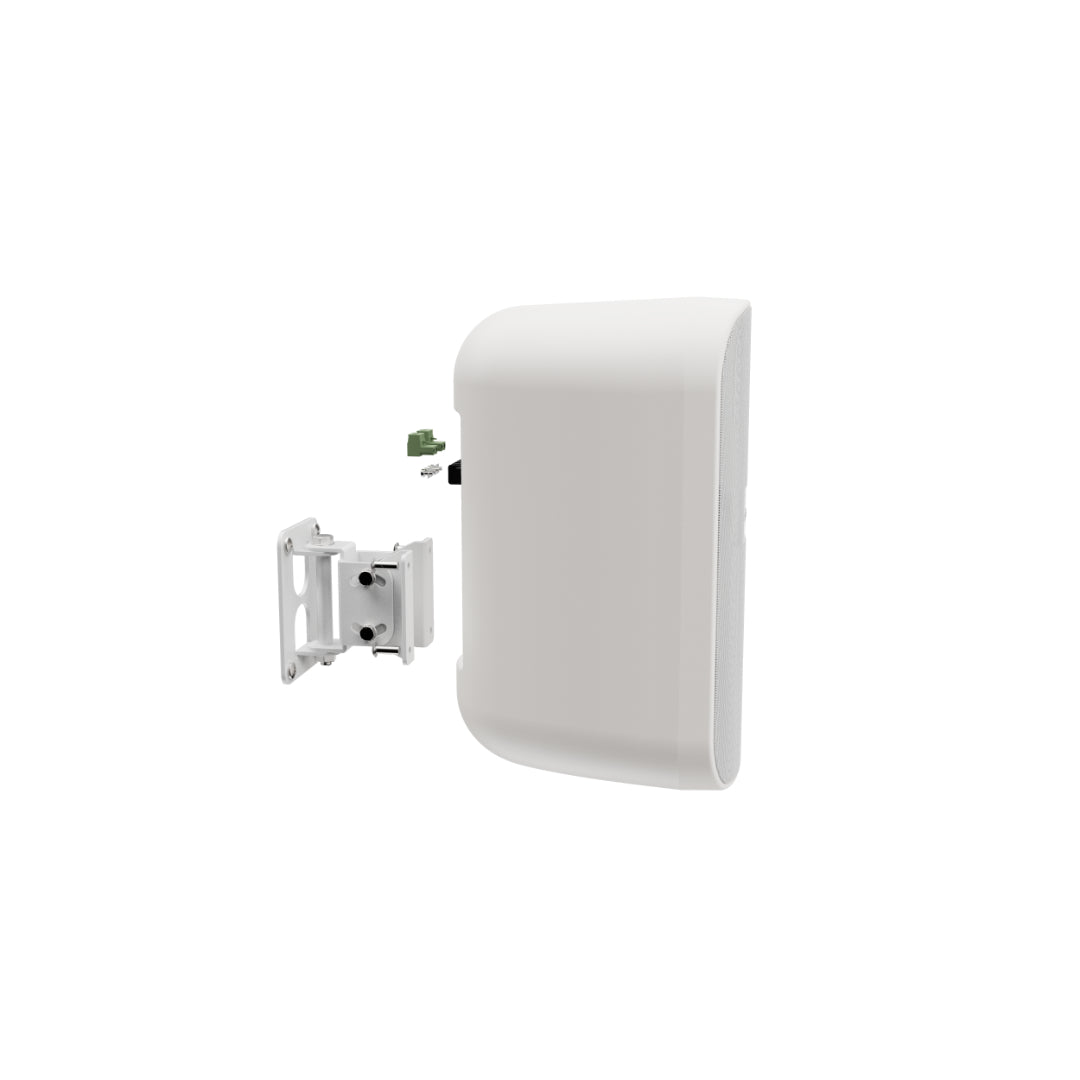

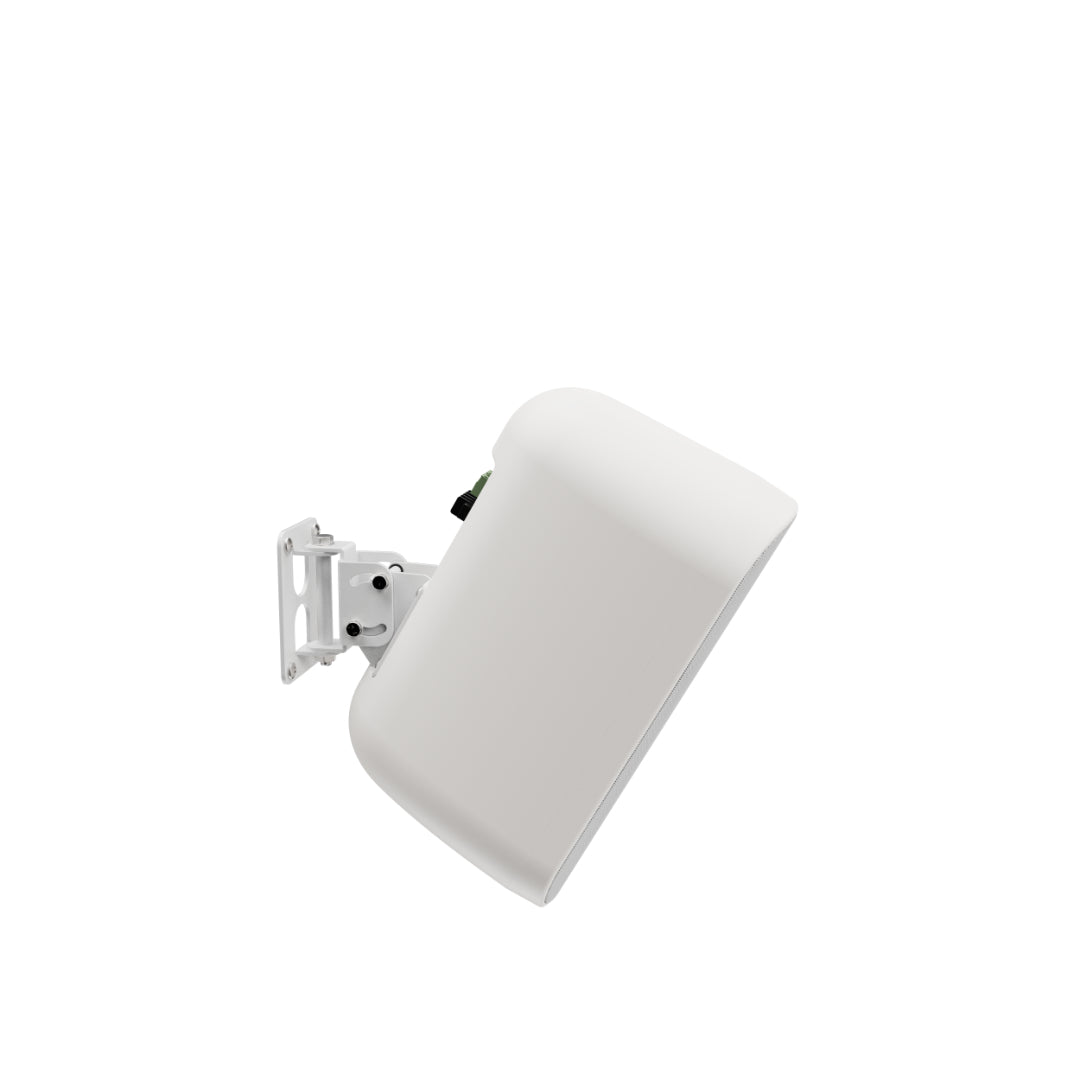

INSTALLATION-READY DESIGN — Includes an adjustable steel wall bracket and ABS plastic cabinet construction, purpose-built for clean, professional fixed installation in any venue.
| Product Details | |
|---|---|
| Barcode | 5060109457308 |
| Model | TNi-W6-WH |
| Country of Origin | China |
| Color | White |
| Dimensions | 7.7 × 13 cm |
| Item Weight | 3.45 |
| Series | Tessen Install Series |
| Series | Tessen Install Series |
| Tech Specs |
|---|
| Max SPL: 113 dB SPL |
| LF Driver: 6.5-Inch HH-Designed LF Driver |
| HF Driver: 1-Inch Dome HF Driver |
| Power Rating: 45W AES, 130W Peak |
| Sensitivity: 90 dB SPL (1W/1m) |
| Frequency Response: 65Hz – 20kHz (-10dB); 80Hz – 18kHz (-3dB) |

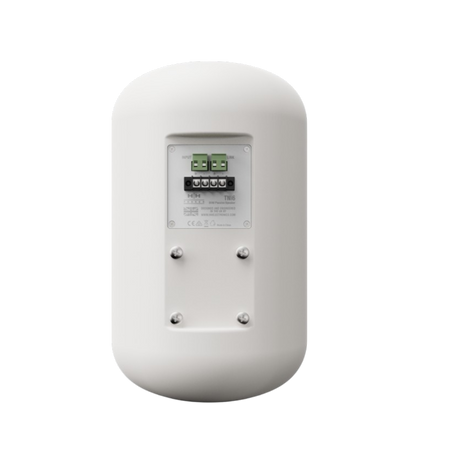

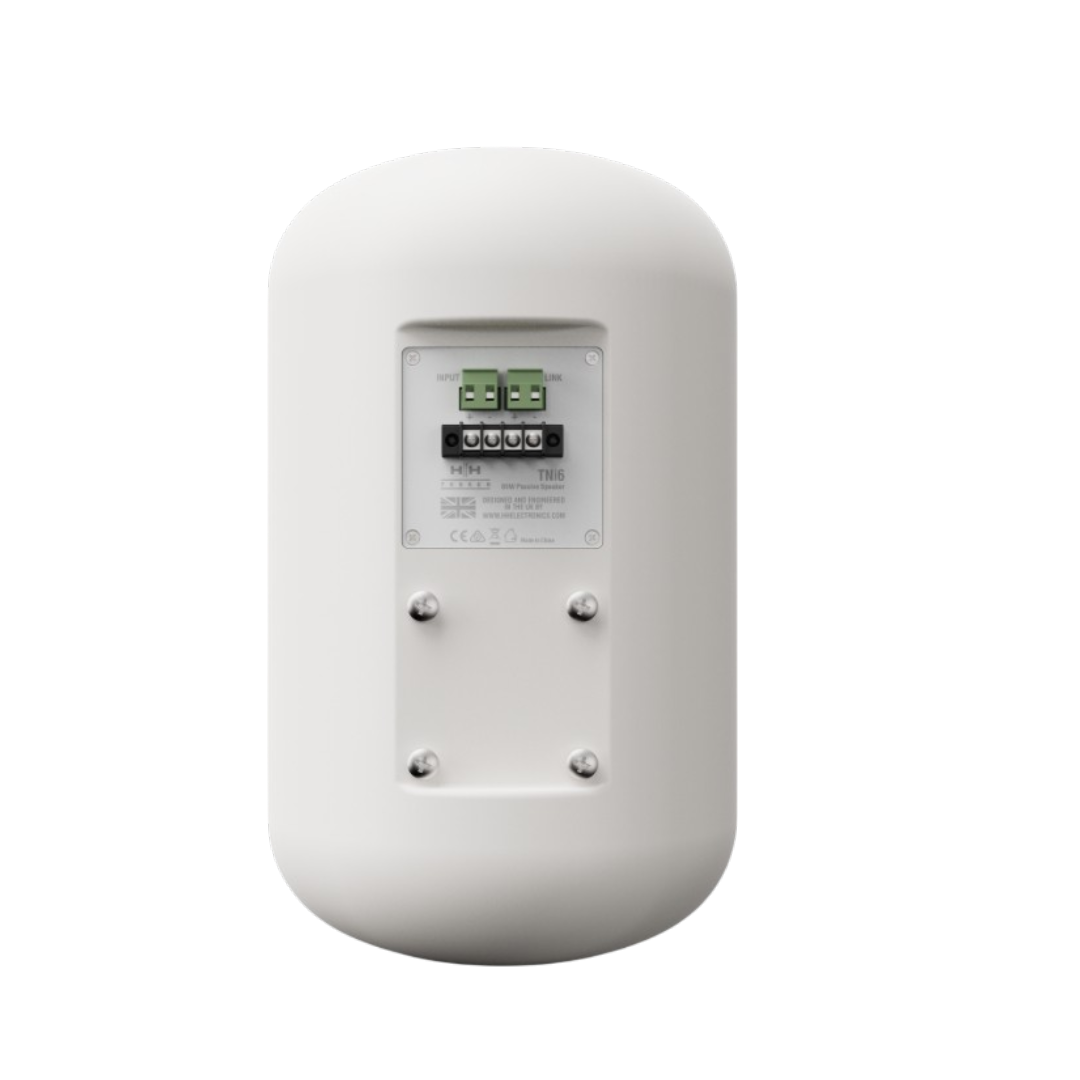

| Input/Link Connector: Euroblock & M4 Terminals |
| Dispersion Angle: Horizontal 90° |
| Vertical 80° |
| Nominal Impedance: 8 Ohm |
| Recommended Amplifier: 100–200W @ 8 Ohm |
| 100V Line Power Options: 40W, 20W, 10W, 5W |
| 70V Line Power Options: 20W, 10W, 5W, 2.5W |
| Cabinet Material: ABS Plastic |
| Mounting Bracket: Adjustable Steel Bracket Included |
| Package Contents |
|---|
|
Powered by a custom HH-designed 6.5-inch LF driver paired with a 1-inch dome HF driver, the TNi-W6-WH reproduces audio faithfully from 65Hz up to 20kHz. The 90° x 80° dispersion pattern ensures wide, even coverage without dead spots, while the 113dB maximum SPL guarantees sufficient output even in moderately sized commercial spaces.
The speaker supports both 100V and 70V line configurations, offering multiple power tap settings to match system requirements precisely. An adjustable steel wall bracket is included, simplifying on-site positioning and integration into any fixed installation project across Dubai, Abu Dhabi, and the wider UAE.
