HH Electronics TRE-1201 HH TENSOR - TRE-1201 - Active moulded speaker - 1400W - 12 inch LF driver + 1 inch CD - DSP
CLASS D AMPLIFICATION WITH DSP — Delivers 1400W Peak and 700W Continuous power through a high-efficiency Class D ampl...
Read More
Couldn't load pickup availability
CLASS D AMPLIFICATION WITH DSP — Delivers 1400W Peak and 700W Continuous power through a high-efficiency Class D amplifier, with HH-designed on-board DSP managing phase, time, EQ, and dual-band limiting.
HH-DESIGNED DRIVER COMBINATION — A 12-inch professional low mid driver with imported glass reinforced cone and a 1-inch compression driver work together to deliver wide-range audio up to 130dB SPL.
FOUR PRESET AUDIO MODES — User-selectable presets for Music, Live, Monitor, and Vocal enable fast, accurate sound customisation to suit any performance or installation environment.
INTEGRATED 2-CHANNEL MIXER — Dual balanced Combi XLR/1/4-inch jack inputs with independent gain controls and a balanced XLR mix output allow seamless connection of multiple audio sources.
PORTABLE AND INSTALLATION-READY ENCLOSURE — Lightweight polypropylene cabinet with monitor angle, 2 moulded carry handles, 35mm pole socket, and 4 x M8 suspension points for flexible deployment anywhere.
| Product Details | |
|---|---|
| Barcode | 5060109456950 |
| Model | TRE-1201 |
| Country of Origin | China |
| Color | Black |
| Dimensions | 14.1 × 24 cm |
| Item Weight | 14.4 |
| Series | Tensor Series |
| Series | Tensor Series |
| Tech Specs |
|---|
| Power Rating: 1400W Peak, 700W Continuous |
| Frequency Response: 45Hz – 20kHz |
| Max SPL: 130 dB SPL |
| LF Driver: 12-Inch HH-Designed Professional Low Mid Driver with Imported Glass Reinforced Cone |
| HF Driver: 1-Inch Compression Driver |
| Coverage: 90° Horizontal x 60° Vertical |
| Amplifier Type: Class D |
| Crossover Frequency: 2.5kHz |
| Input Connectors: 2x Balanced Combi XLR/1/4-Inch Jack |
| Output Connectors: 1x Balanced XLR Mix Output |
| Indicators: Power, Clip Indicator, EQ Mode, Front Illuminated Logo |
| EQ: User Selectable Performance Presets — Music, Live, Monitor, Vocal |
| DSP: Crossover, EQ, Dual Band Limiters, Phase and Time Optimisation |
| Protection: Comprehensive Protection and Clip Free Limiting + Clip Indicator |

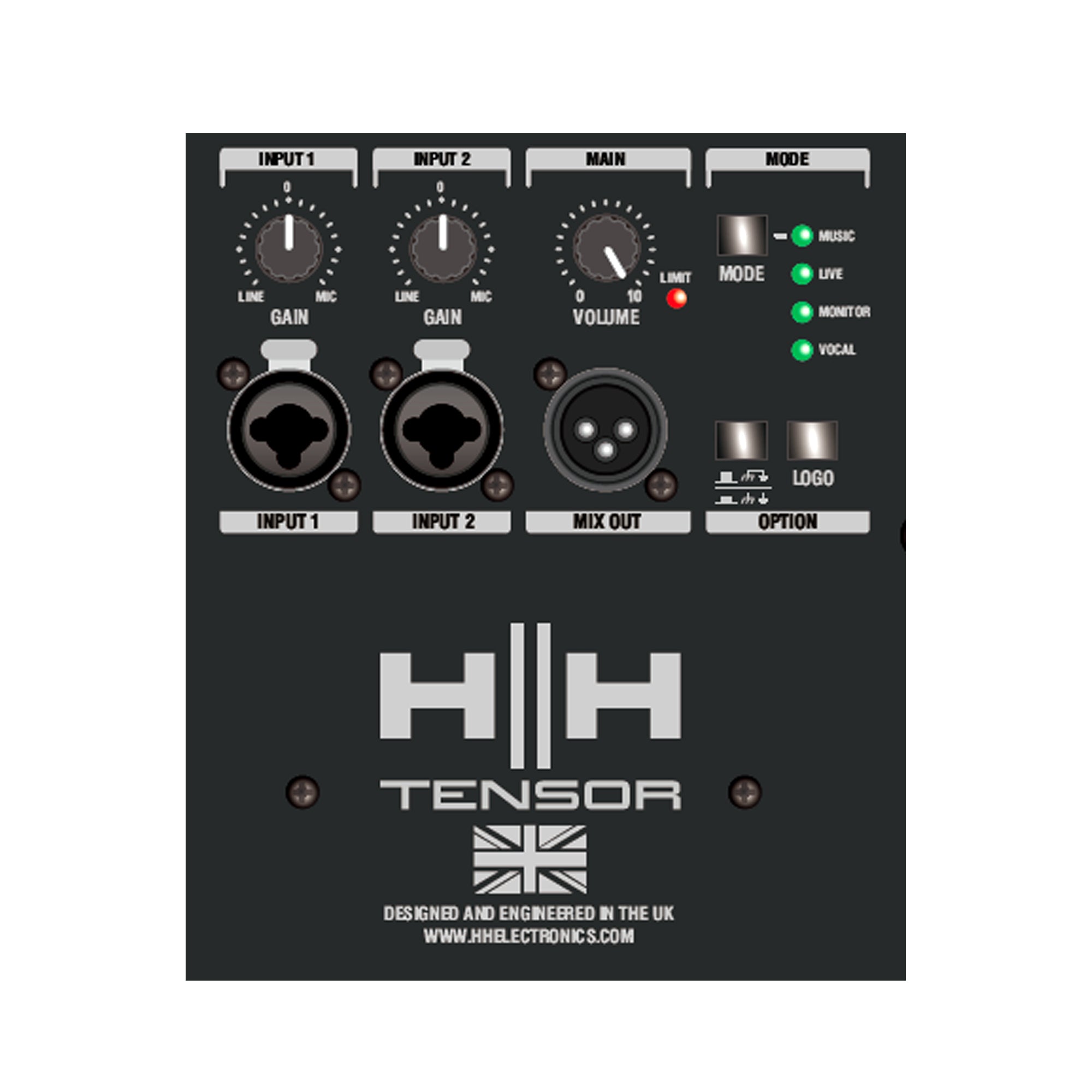

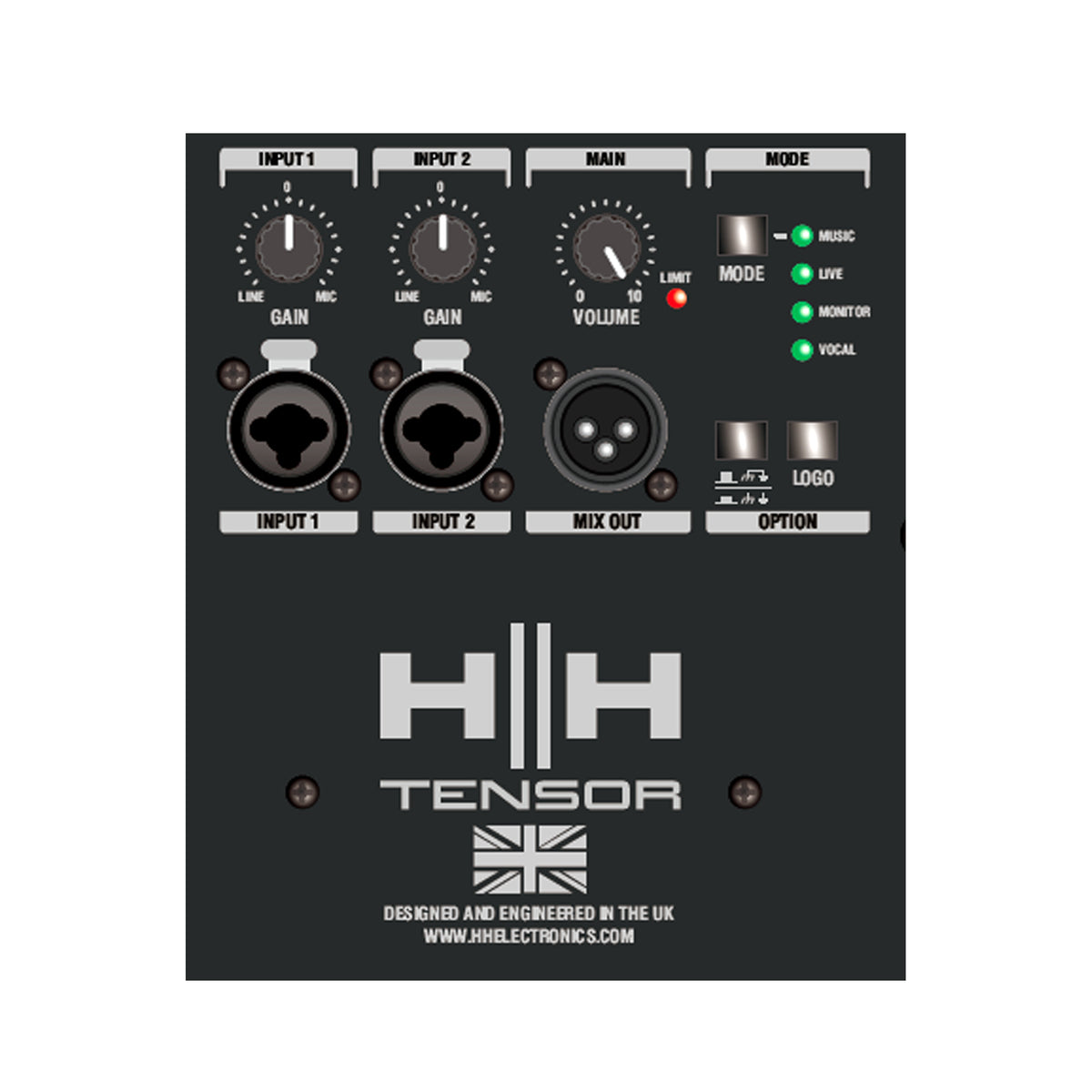

| Controls: 2x Channel Gain, Master Volume, Logo On/Off, Ground Lift, EQ Mode |
| Cabinet: Robust Polypropylene Cabinet with Two Handles and Monitor Angle |
| Finish: Black |
| Grille: Heavy Gauge Powder-Coated Steel, Black with Acoustic Foam Backing |
| Others: 35mm Distance Pole Socket, 4 x M8 Mounting Points |
| AC Power: User Switchable 100–120V~ or 220–240V~ 50/60Hz |
| Power Consumption: 300W Typical |
| Package Contents |
|---|
|
The speaker pairs a custom HH-designed 12-inch low mid driver featuring an imported glass reinforced cone with a 1-inch compression driver, providing a maximum SPL of 130dB across a focused 90° x 60° coverage pattern. The high-efficiency Class D amplifier is backed by intelligent on-board DSP that handles crossover, EQ, dual-band limiting, and phase and time optimisation, ensuring the system is protected and performing at its best under all conditions.
Four user-selectable audio presets — Music, Live, Monitor, and Vocal — take the guesswork out of sound setup, while the integrated 2-channel mixer simplifies multi-source connectivity. The rugged polypropylene enclosure, switchable voltage compatibility, illuminated HH logo, 35mm pole socket, and 4 x M8 suspension points make the TRE-1201 a truly versatile solution for portable and fixed audio installations throughout Dubai, Abu Dhabi, and across the wider UAE.
