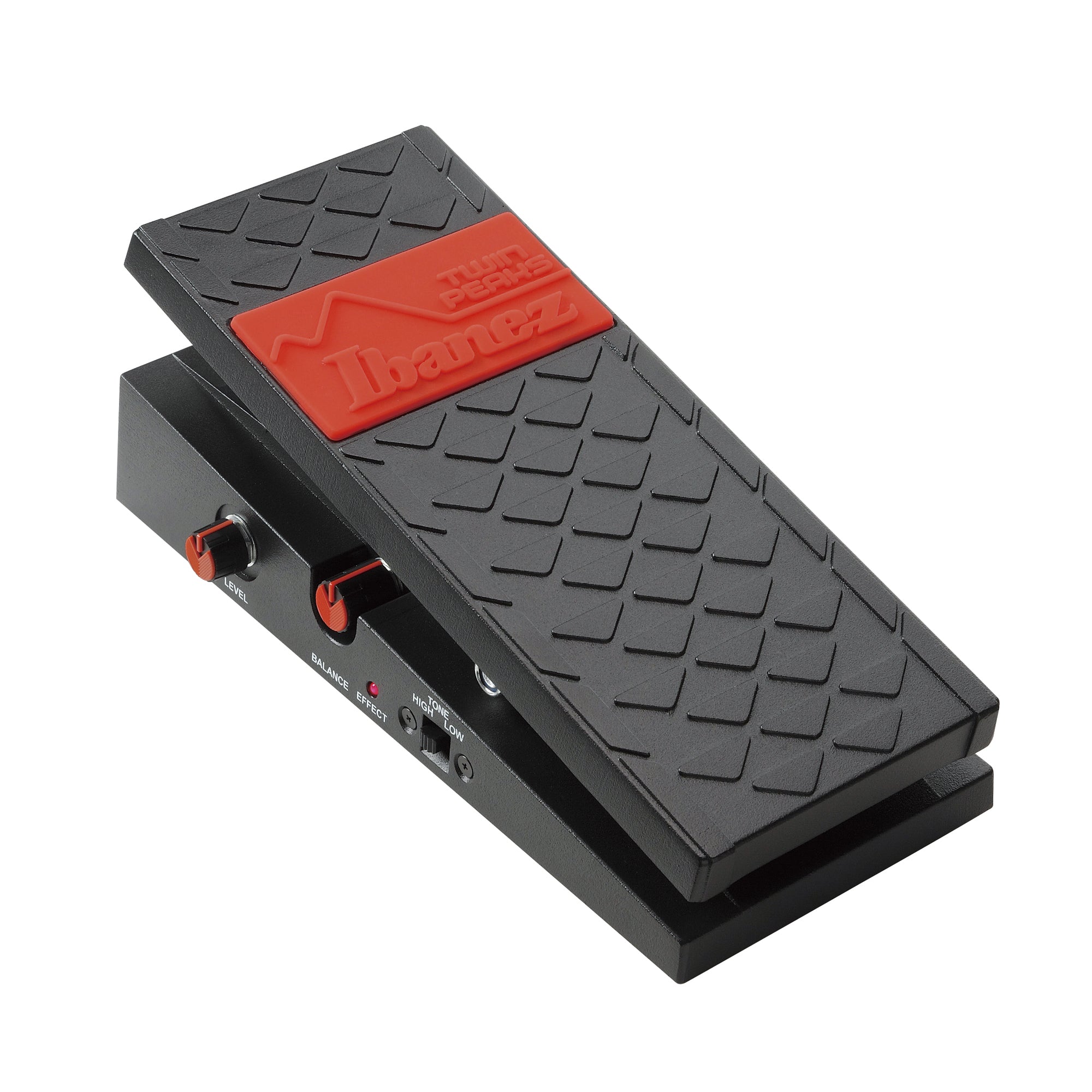

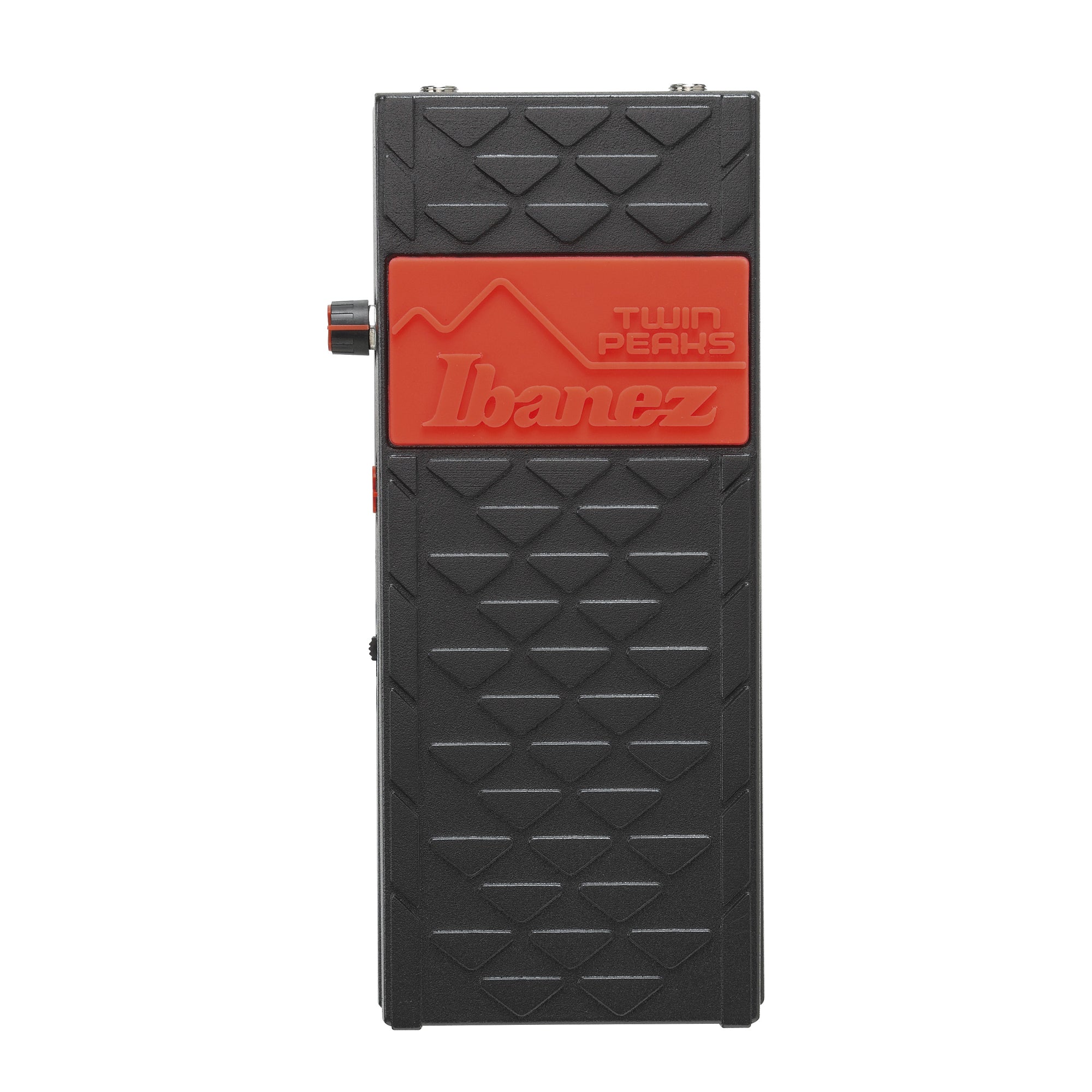

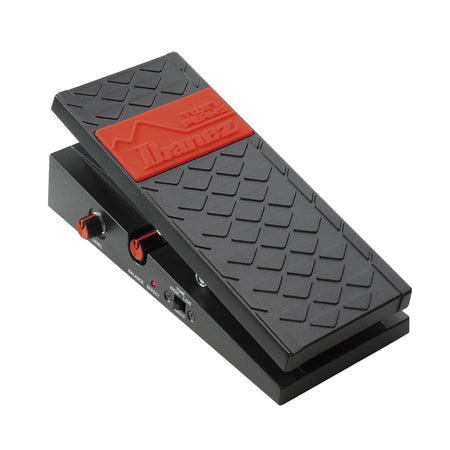

Ibanez TWP10 Twin Peaks Wah Pedal
IBANEZ TWP10 TWIN PEAKS WAH PEDAL — ALSO SEARCHED AS IBANEZ WAH PEDAL OR TWIN PEAKS WAH EFFECT — REVOLUTIONARY DUAL I...
Read More
Couldn't load pickup availability
IBANEZ TWP10 TWIN PEAKS WAH PEDAL — ALSO SEARCHED AS IBANEZ WAH PEDAL OR TWIN PEAKS WAH EFFECT — REVOLUTIONARY DUAL INDUCTOR CIRCUIT: Unlike conventional single-peak wah pedals, the TWP10 uses dual inductor circuitry to simultaneously generate two distinct resonant frequency peaks for richer sonic depth.

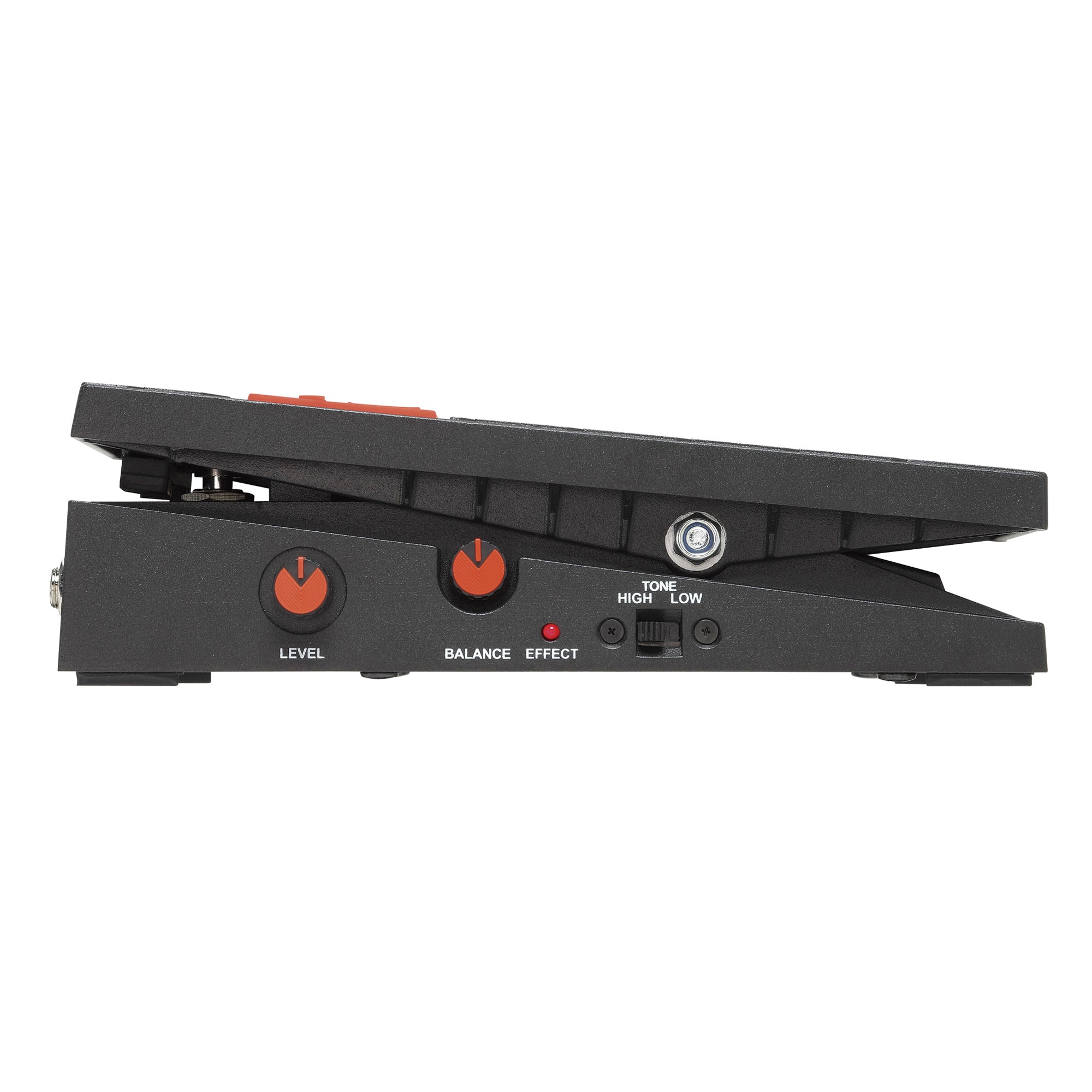

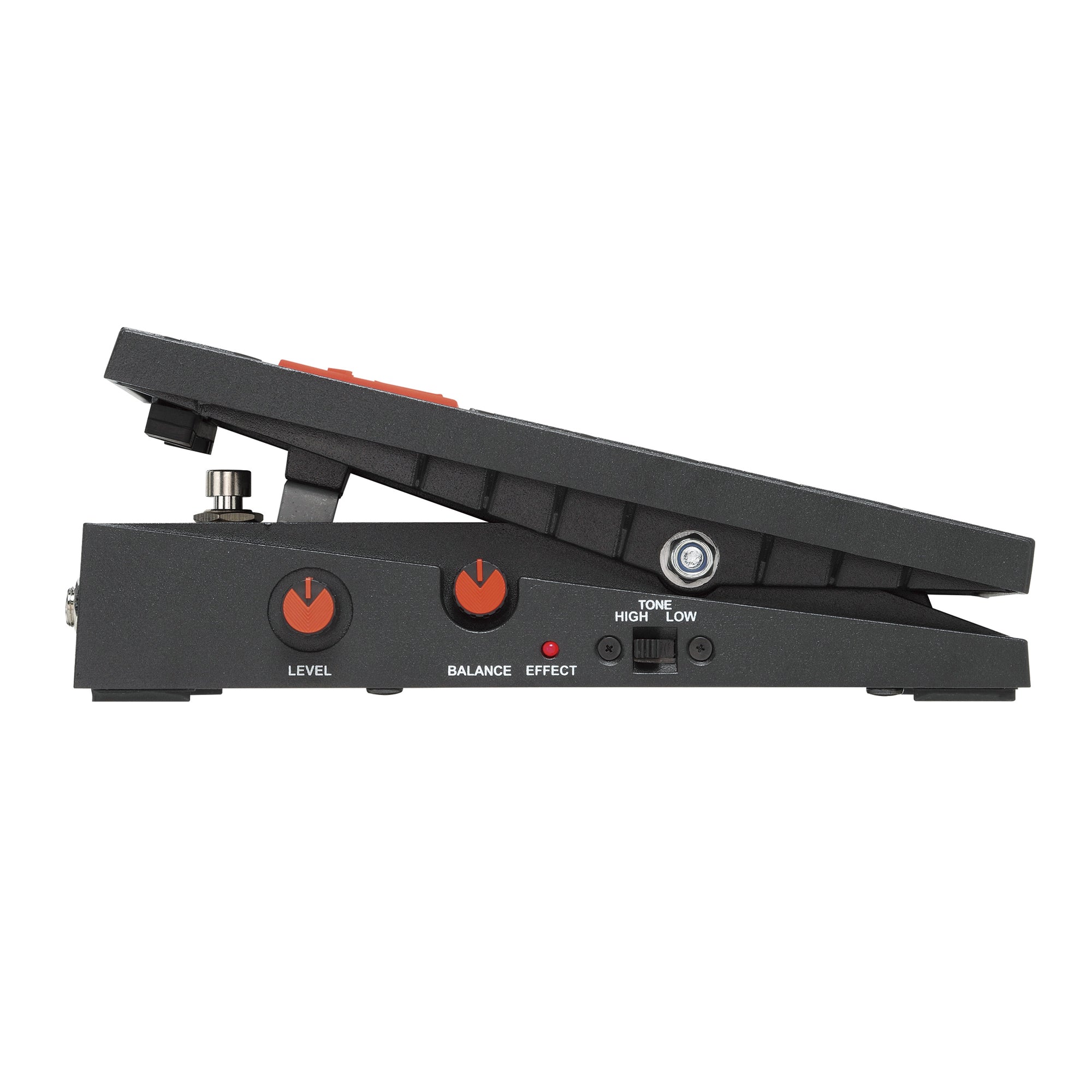

BALANCE CONTROL FOR PRECISE MIX RATIO OF DUAL FREQUENCY PEAKS FOR EXPANDED SONIC EXPERIMENTATION: The Balance knob adjusts the blend between the higher and lower frequency peaks — counter-clockwise emphasizes the higher peak while clockwise shifts focus to the lower peak for expressive tonal variety.
TONE MODE SWITCH HIGH / LOW FOR SELECTABLE WAH SWEEPING FREQUENCY RANGES: HIGH mode sweeps higher frequency from 670Hz to 3kHz and lower from 300Hz to 1kHz — LOW mode sweeps higher frequency from 440Hz to 2kHz and lower from 220Hz to 750Hz for versatile wah character selection.
MASTER LEVEL CONTROL WITH UNITY GAIN AT 12 O'CLOCK AND UP TO +6dB BOOST AT MAXIMUM: Dedicated master level knob controls overall output signal level — set to unity gain at noon position — push further clockwise for up to +6dB output boost to cut through any live or studio mix.

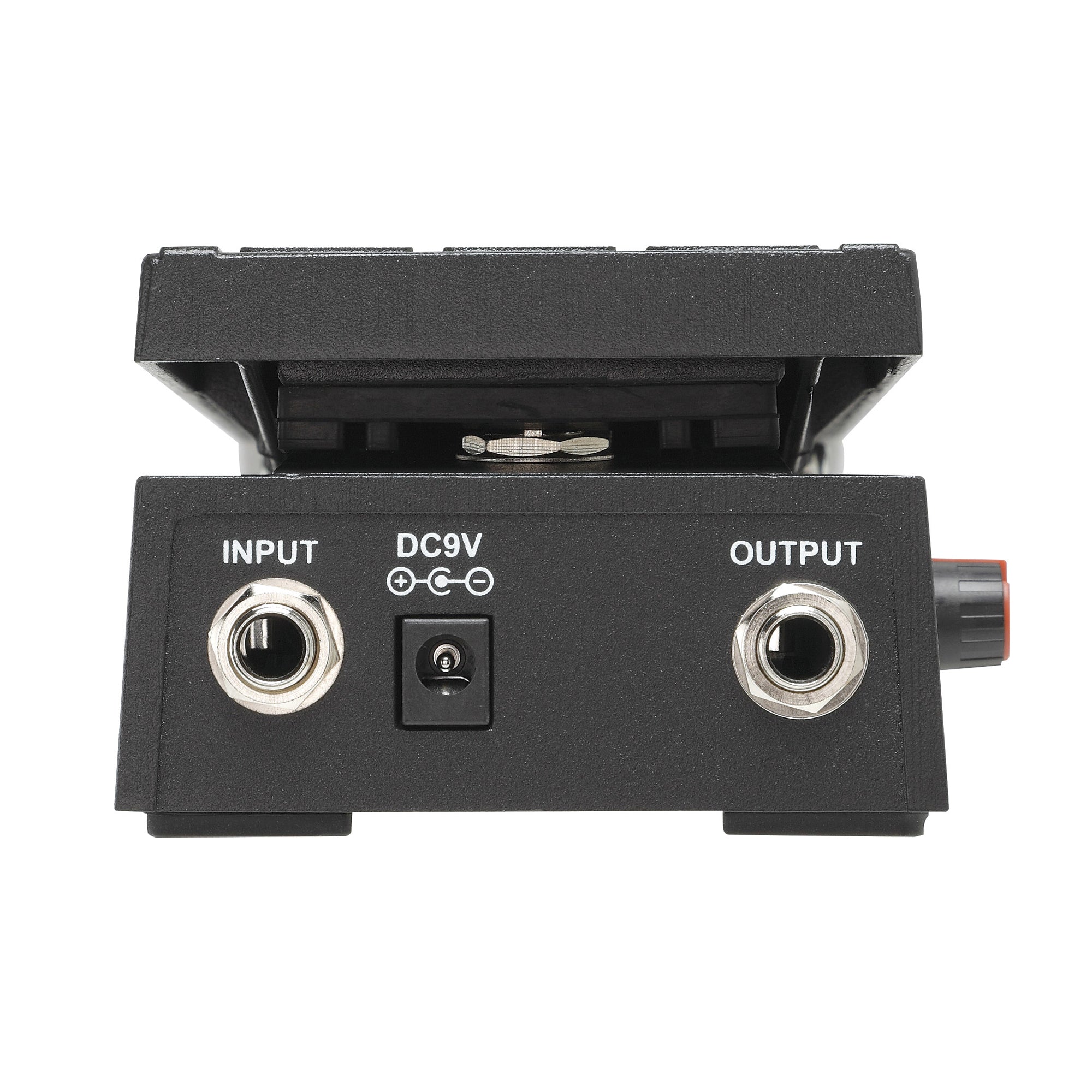

TRUE BYPASS WITH 9V BATTERY OR DC 9V ADAPTER POWER — DIMENSIONS 96MM x 202MM x 84MM / 815G: True bypass switching delivers cleanest signal path when disengaged — powered by 9V battery or external DC 9V center-negative adapter — 15mA current draw — compact 815g build for pedalboard use.
