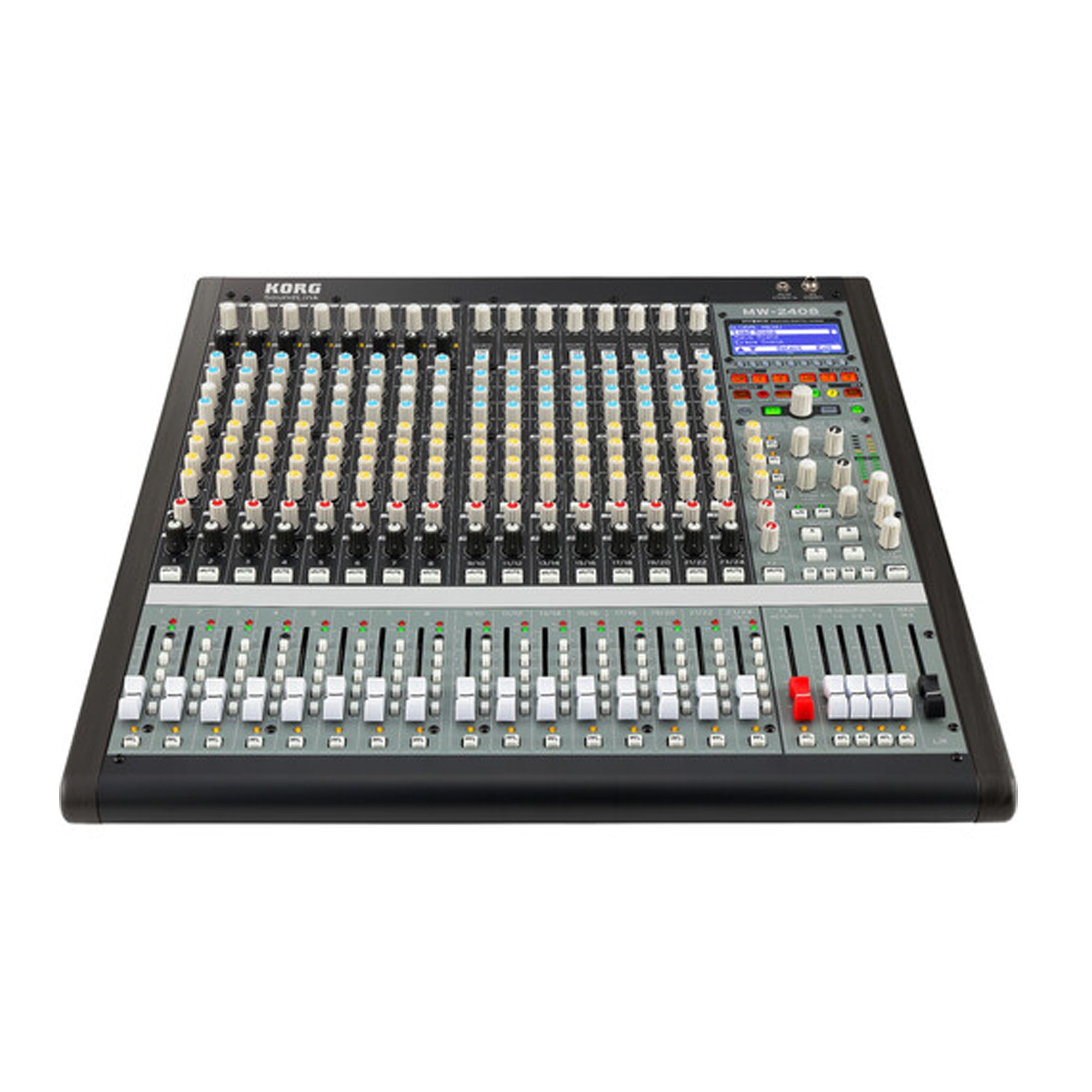

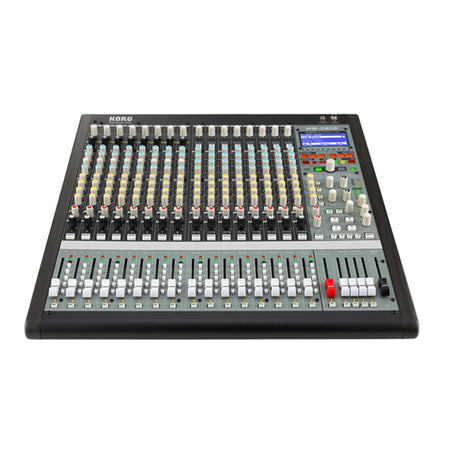

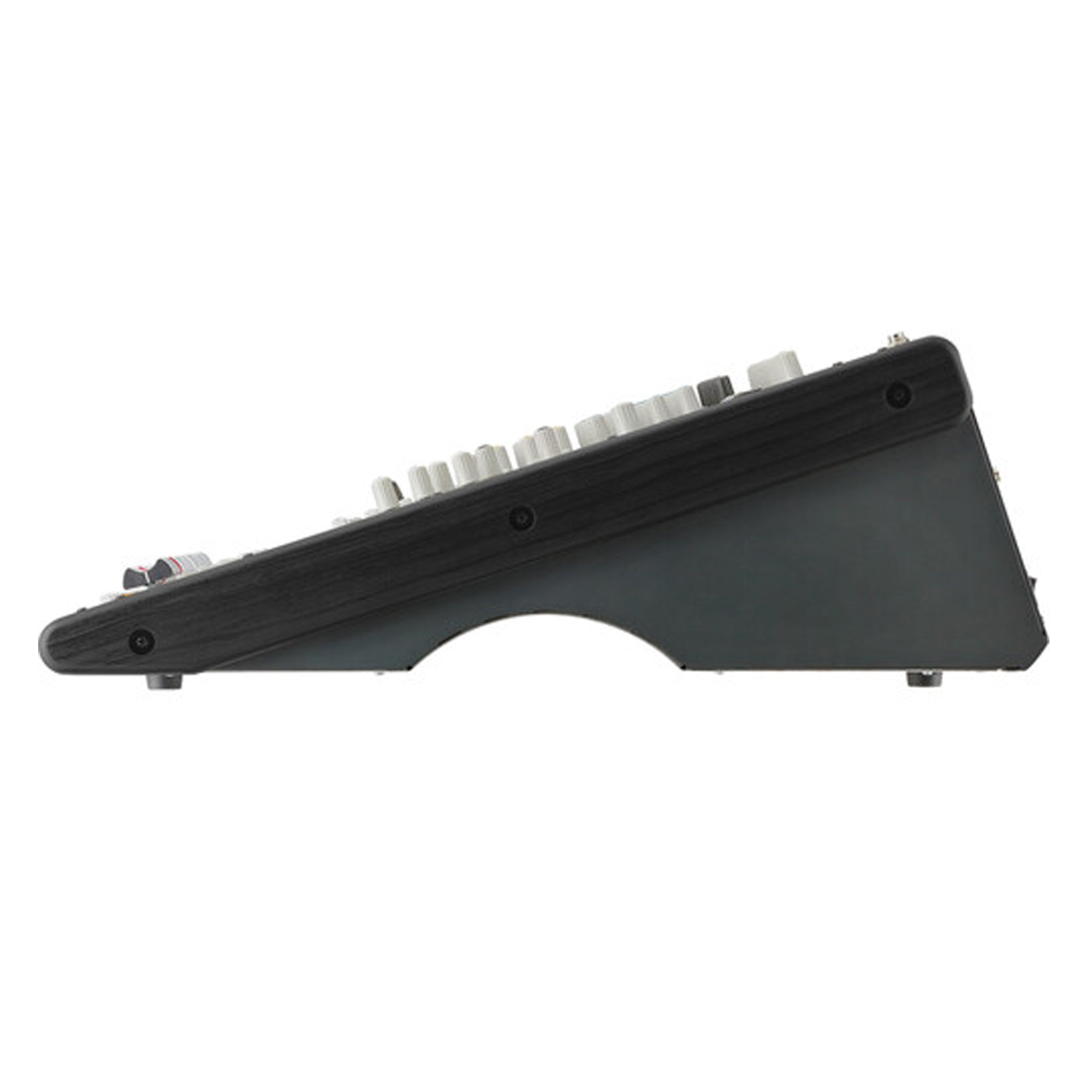

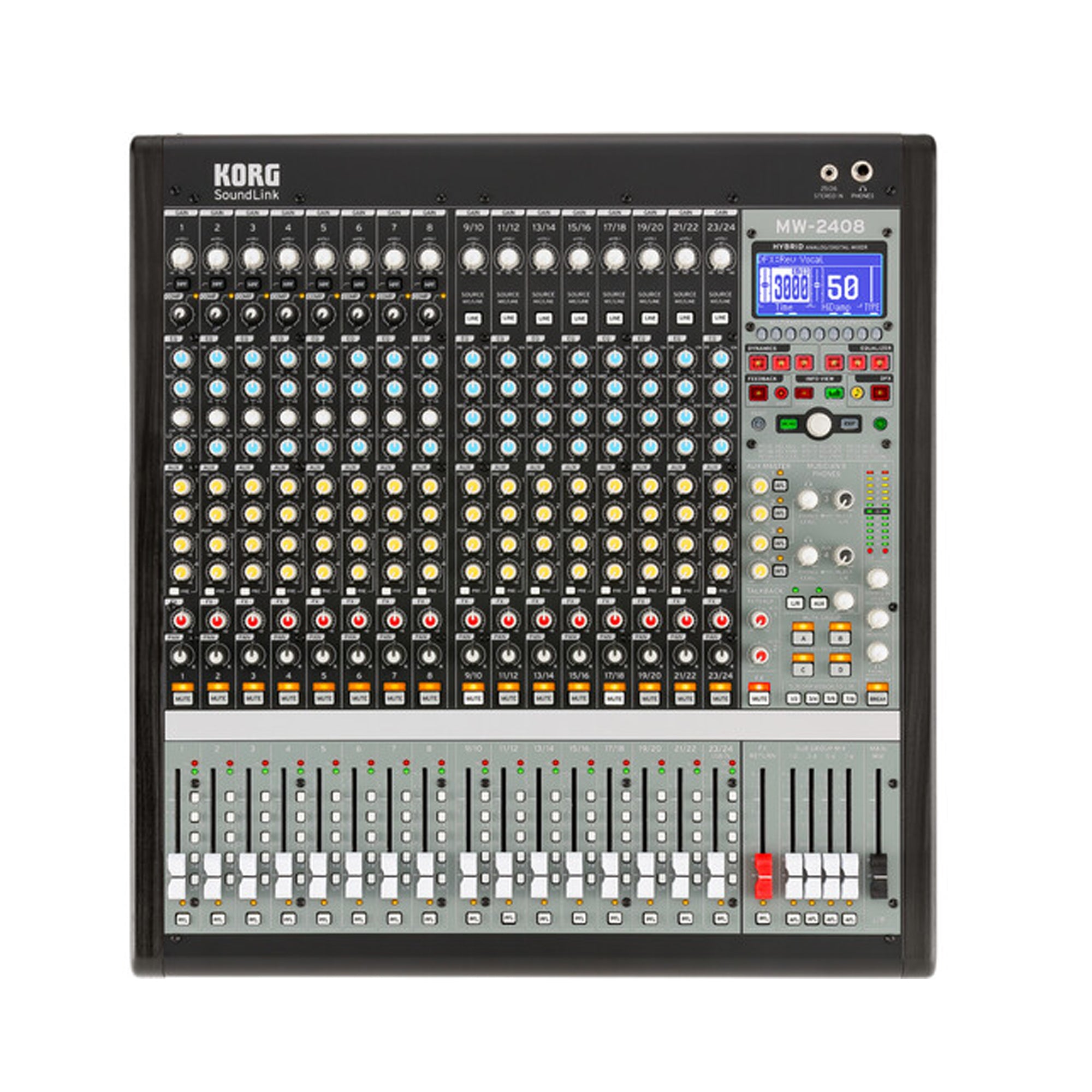

KORG MW-2408-BK AUDIO MIXER
HIVOLT PREAMPS DESIGNED BY GREG MACKIE AND PETER WATTS — The MW-2408-BK was co-designed by mixer legends Greg Mackie ...
Read More
Couldn't load pickup availability
HIVOLT PREAMPS DESIGNED BY GREG MACKIE AND PETER WATTS — The MW-2408-BK was co-designed by mixer legends Greg Mackie and Peter Watts, delivering HiVolt microphone preamps with -128dBu E.I.N and 16.5V internal voltage for the highest headroom of any comparably priced mixer, including on stereo channels.
KORG TRU-BIT-PERFECT 32-BIT INTERNAL PROCESSING — All signal processing runs at 32-bit depth through Korg's proprietary Tru-Bit-Perfect engine, achieving 115dB dynamic range on the main L/R bus with 24-bit USB stereo recording at 48kHz or 44.1kHz sampling rates.
31-BAND PARAGRAPHIC EQ WITH 24-CHANNEL SPECTRUM ANALYZER — A powerful 31-band digital multi-band EQ with wide 1-octave and narrow 1/2-octave modes pairs with an exclusive 24-channel spectrum analyzer with peak hold function to solve acoustical challenges no other small mixer can handle.
FOUR PROGRAMMABLE MUTE GROUPS WITH SCENE MEMORIES — The MW-2408-BK is the only small mixer featuring four programmable and recallable mute groups, backed by 10 Global Scene Memories, 24 FX Memories, and 10 Dynamics presets for instant recall across songs, sets, and stage configurations.
24 KORG CUSTOM EFFECTS WITH MUSICIAN'S MONITOR MIXES — A proprietary Korg custom effects chip delivers 24 ultra-realistic digital effects including six reverbs each with warm versions, while the exclusive Musician's Phone feature provides dedicated one-knob monitor boost for two individual performers without affecting the main mix.
| Product Details | |
|---|---|
| Barcode | 4959112199026 |
| Model | MW-2408-BK |
| Country of Origin | China |
| Dimensions | 64 × 56 × 27 CM |
| Item Weight | 16.13 KG |
| Series | SoundLink Series |
| Series | SoundLink Series |
| Tech Specs |
|---|
| Type: Analogue Mixing Console |
| Input Type: Balanced female XLR and 1/4" TRS |
| Microphone Preamp: -128dBu E.I.N, -10 to -60 dBu nominal input level, 3K? input impedance |
| Frequency Response: +0.5 to -1.5 dBu, 20Hz to 20kHz |
| THD: 0.004% (20–20kHz, unity gain, unweighted) |
| S/N Ratio: -70 dBu (Ref = +4dB, 20kHz BW, unity gain, A-weighted) |
| System Crosstalk: Input to Output: -70 dBu; Adjacent Channels: -90 dBu |
| Gain Control Range: +10dB to +60dB (Mic), -10 to +40dB (Line) |
| Main Outputs: Balanced male XLR and 1/4" TRS |
| Maximum Output Level: +26 dBu |
| Output Impedance: 75? |
| Headphone Output: 100 mW/ch @ 32? load, 20Hz–20kHz |
| Savable Settings: Channel Mutes, Effects and Effects Mutes, Mute Groups, Break Settings, Dynamics, Graphic EQ, Feedback assign to bus |
| Recallable Presets: 4 Mute Groups, 10 Global Scene Memories, 24 FX Memories, 10 Dynamics, 6 GEQ, 16 or 24 Channel Mutes, 3 Feedback bus assignments |
| Mono Channel EQ: HI (12kHz shelving), MID (peak, sweepable 250Hz–5kHz), LO (100Hz shelving), ±15dB boost/cut |
| Stereo Channel EQ: HI (12kHz shelving), HI MID (2.5kHz peaking), LO MID (250Hz peaking), LO (100Hz shelving) |
| High Pass Filter: 12dB/octave at 80Hz |
| Digital Multi-band EQ: 31-bands, nine frequencies selectable at any one time, Wide 1-octave and Narrow 1/2-octave modes |
| Digital Compressor: Hard: 1ms–40ms Attack, +11dB to 0dB Threshold; Soft: 1ms–40ms Attack, +11 to -5dB Threshold |
| Digital Limiter: 1ms–40ms Attack, +19 to +3dB Threshold |
| Digital Noise Gate: Hard: 40ms–1500ms Release, -35 to +7dB Threshold; Soft: 40ms–1500ms Release, -50 to +4dB Threshold |
| Spectrum Analyzer: 24-channel with Peak Hold function |
| Main L/R Bus ADC Dynamic Range: 115dB (A-weighted) |
| Aux and FX Buses ADC Dynamic Range: 111dB (A-weighted) |
| DAC Dynamic Range: 115dB (A-weighted) |
| USB Stereo Input/Recording Port: USB Class 1 |
| Internal Processing: 32-bit |
| A/D/A Bit Depth: Korg Tru-Bit-Perfect 32-bit |
| USB Bit Depth: 24-bit |
| Sampling Rates: 48kHz, 44.1kHz |
| Digital Effects: Rev Hall, Rev Hall Warm, Room, Warm Room, Rev Vocal, Rev Vocal Warm, Stage, Stage Warm, Plate Reverb, Plate Reverb Warm, Spring Reverb Warm, Analog Delay, Tape Echo, Variable Delay, Delay of the Korg SDD3000, Chorus, Flanger, Exciter, Sub Bass Booster, 1kHz Test Tone, Slow Sweep, Fast Sweep, White or Pink Noise |
| Power Connector: IEC |
| Input Voltage Range: 100 to 240 VAC, 50/60Hz |
| Power Requirements: 45W continuous |
