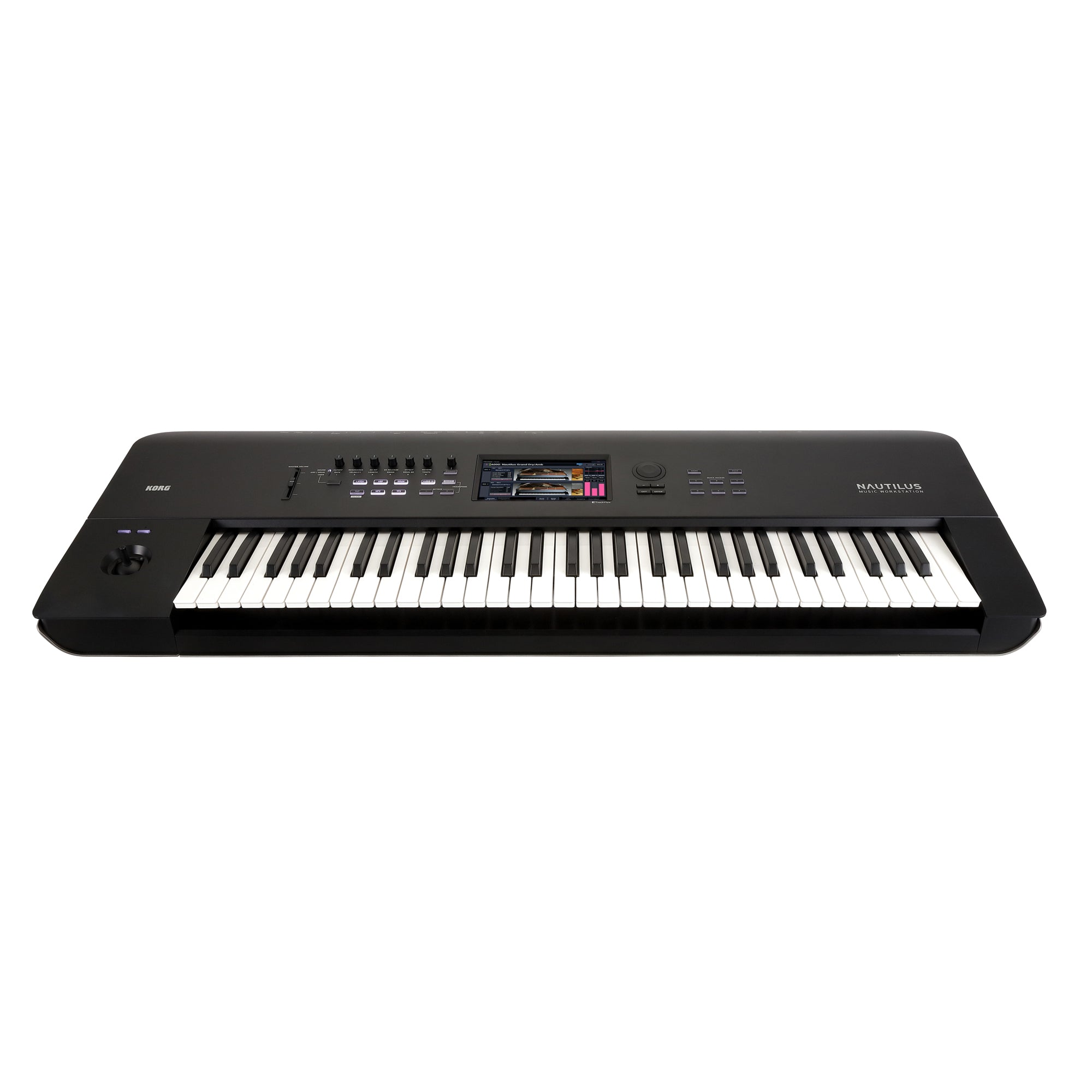

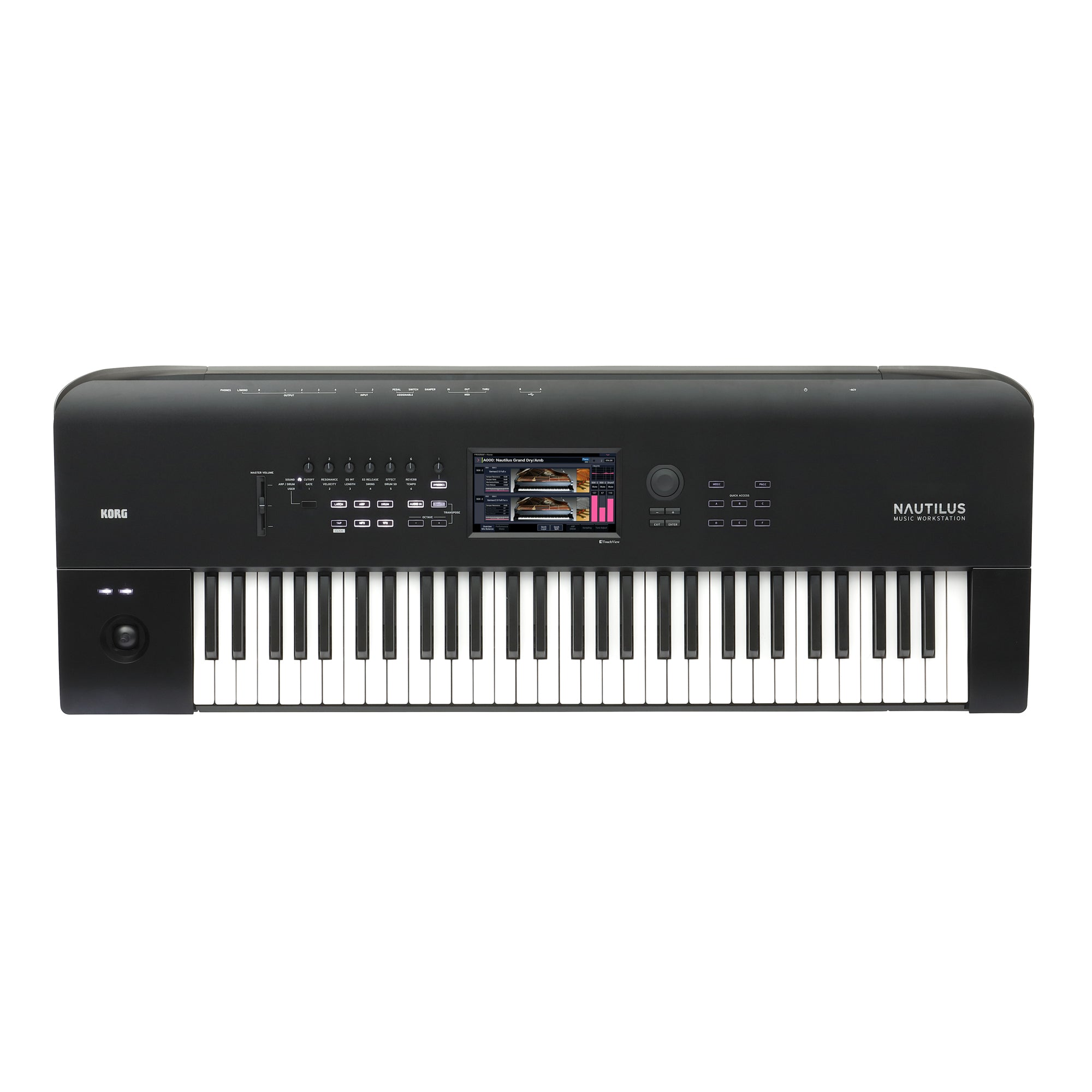

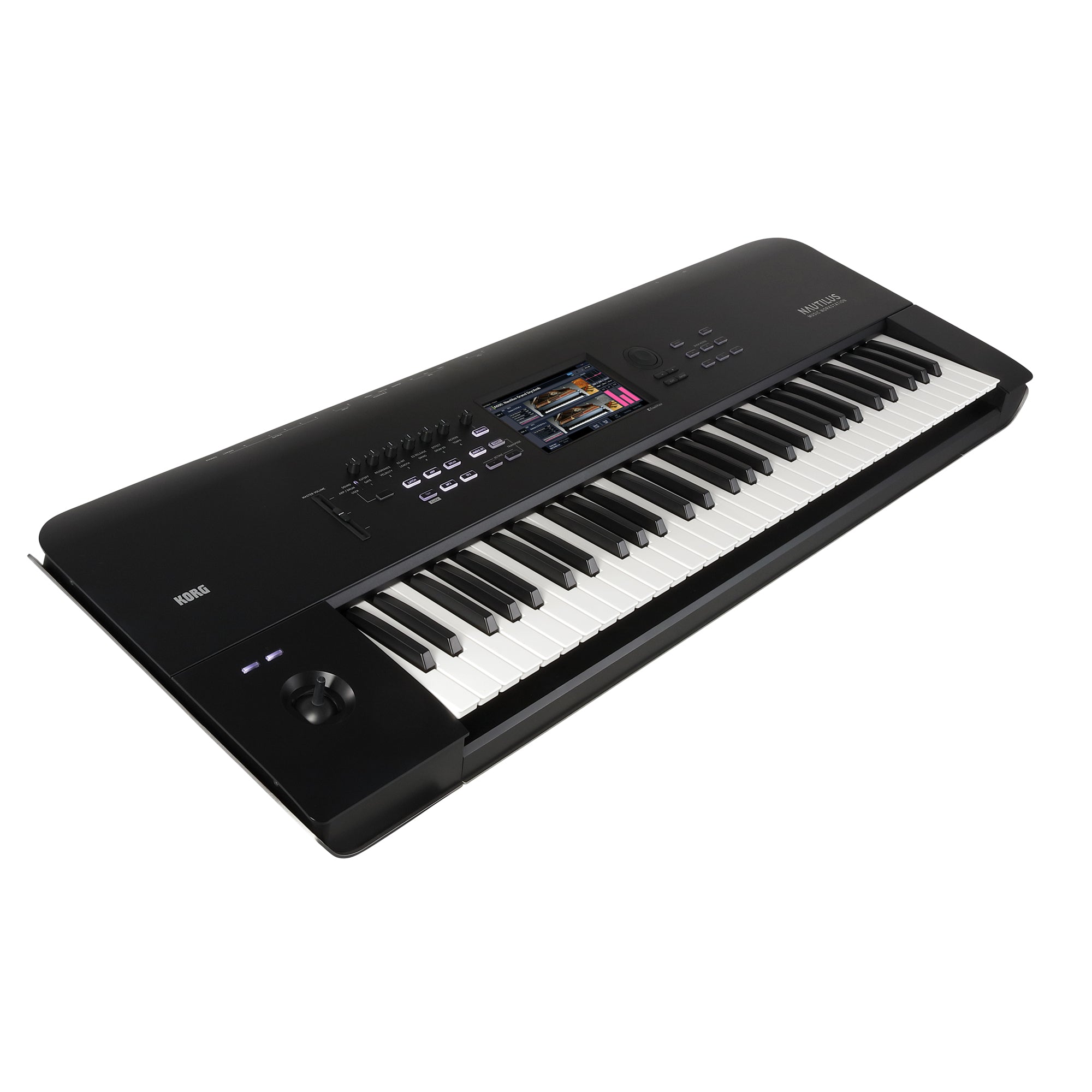

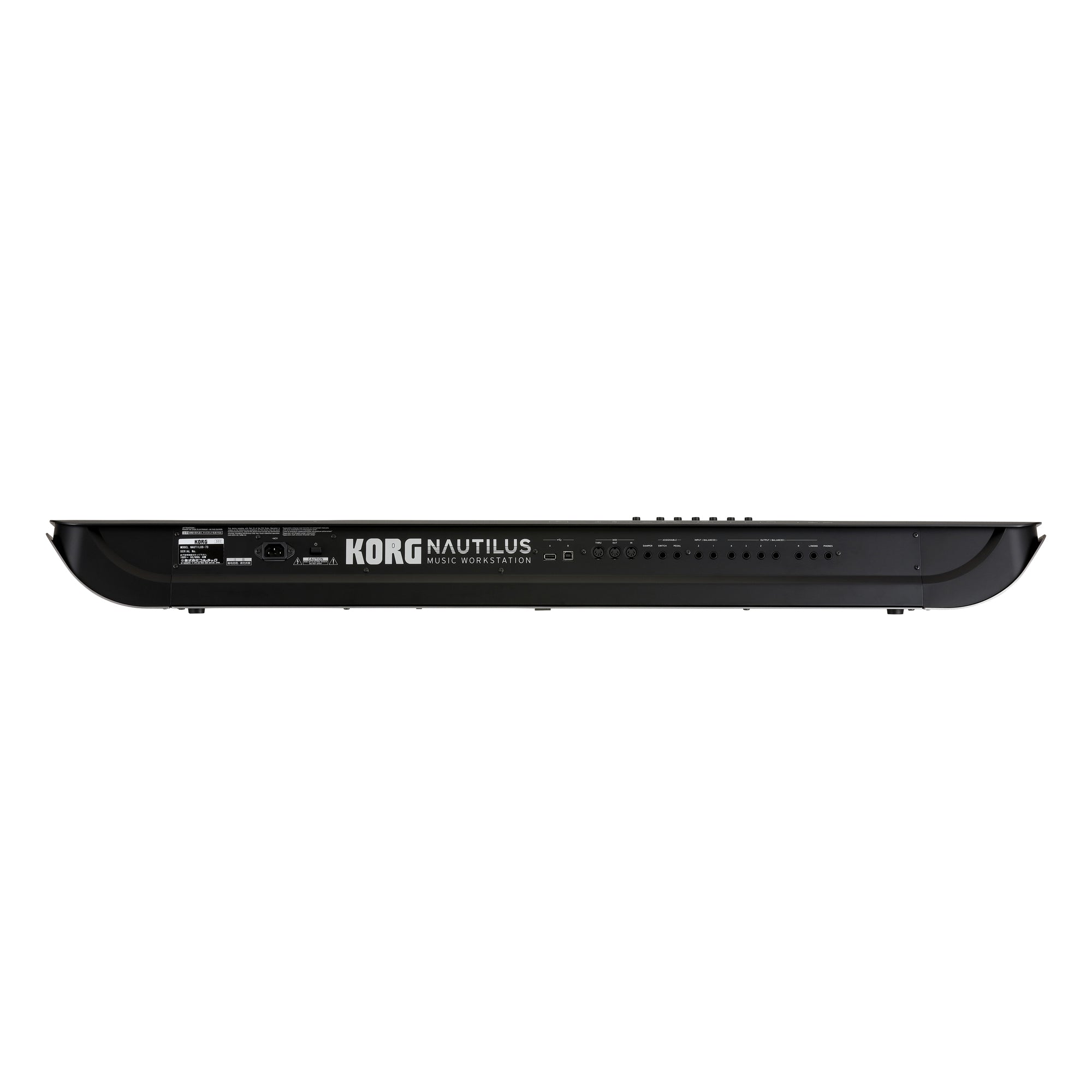

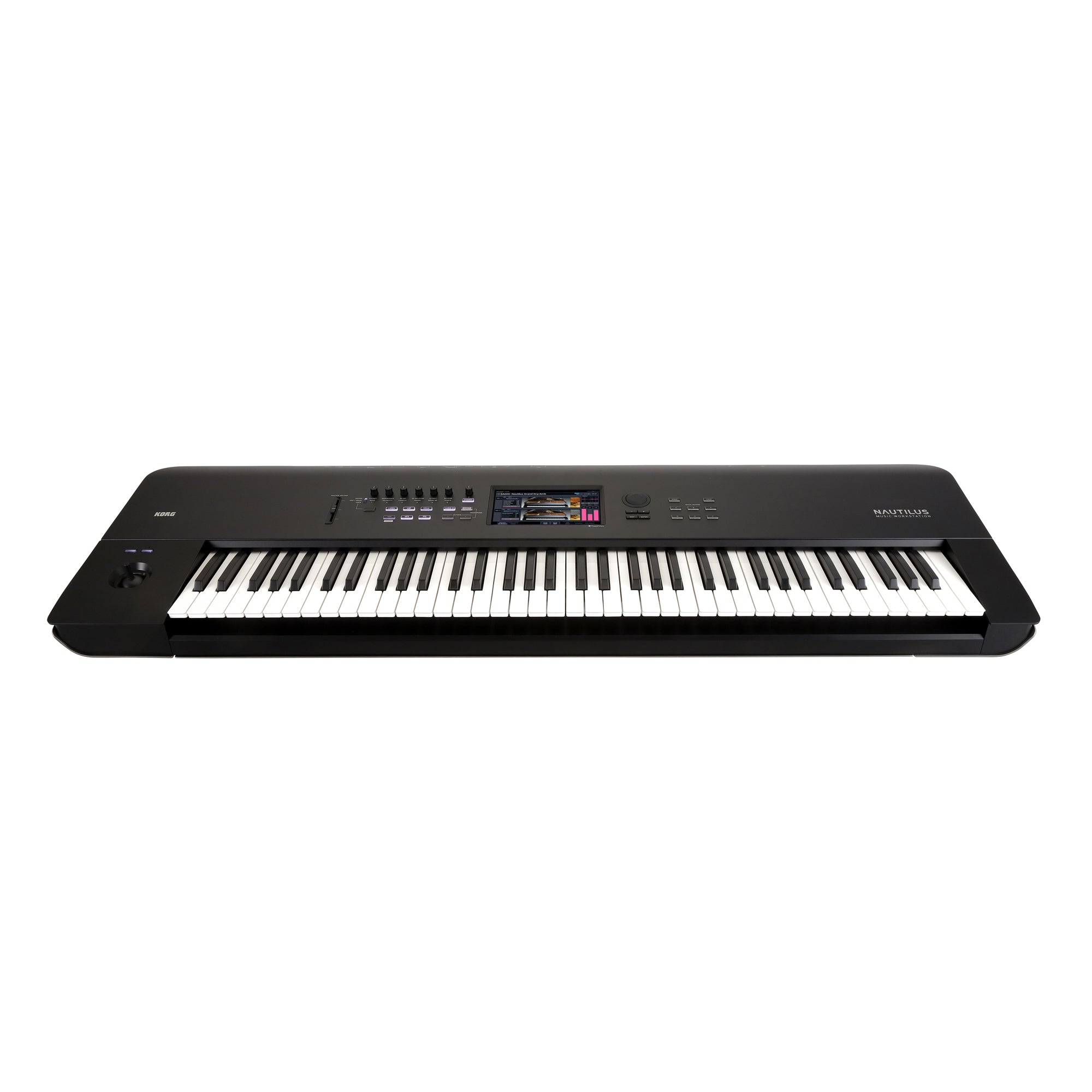

KORG NAUTILUS-61 SYNTHESIZER
NINE INDEPENDENT SYNTHESIS ENGINES — The Korg Nautilus-61 houses nine dedicated sound engines — including SGX-2 Premi...
Read MoreCouldn't load pickup availability
NINE INDEPENDENT SYNTHESIS ENGINES — The Korg Nautilus-61 houses nine dedicated sound engines — including SGX-2 Premium Piano, EP-1 Electric Piano, CX-3 Tonewheel Organ, MOD-7 VPM Synthesizer, and more — delivering professional-grade sonic versatility in one instrument.
ADVANCED TOUCHVIEW COLOR DISPLAY — A 7-inch WVGA TFT TouchView display with adjustable brightness provides intuitive touch-drag navigation, fast sound searching, and precise real-time control for seamless live and studio workflows.
EXPANSIVE SOUND LIBRARY WITH DYNAMIC POLYPHONY — Ships with 2,560 User Memory Programs and 1,792 User Memory Combinations preloaded, backed by dynamic polyphony allocation across all nine engines for uninterrupted, expressive performance.
16-TRACK SEQUENCER & OPEN SAMPLING SYSTEM — A full 16-track MIDI sequencer paired with a 16-track audio recorder and Open Sampling System supports up to 80 minutes of stereo disk sampling with Time Stretch, Time Slice, and Crossfade Loop editing.
PROFESSIONAL EFFECTS PROCESSING — Features 197 effect types across Insert, Master, and Total effects processors, with per-track 3-band EQ, Dynamic Modulation, stereo side-chaining, and 783 effect presets for complete sound shaping.
| Product Details | |
|---|---|
| Barcode | 4959112195240 |
| Model | NAUTILUS-61 |
| Country of Origin | Japan |
| Color | Black |
| Dimensions | 121.6 × 48.9 × 23.7 CM |
| Item Weight | 23.49 KG |
| Series | Nautilus Series |
| Series | Nautilus Series |
| Tech Specs |
|---|
| Type: Music Workstation |
| System: NAUTILUS System Version 1.0 |
| Sound Engine: 9 different engines — HD-1 High Definition Synthesizer (PCM) — AL-1 Analog Synthesizer (Analog Modeling) — CX-3 Tonewheel Organ (Tonewheel Organ Modeling) — STR-1 Plucked String (Physical Modeling) — MS-20EX Component Modeling Technology (Analog Modeling) — PolysixEX Component Modeling Technology (Analog Modeling) — MOD-7 Waveshaping VPM Synthesizer (VPM Synthesis) — SGX-2 Premium Piano (Acoustic Piano) — EP-1 MDS Electric Piano (Electric Piano) |
| Keyboard: 61-key, Natural Touch Semi-Weighted |
| After Touch: No |
| Velocity Sensitivity: Yes |
| Display: TouchView graphical user interface, 7 inch TFT, WVGA (800x480 dots), adjustable brightness |
| Audio Recorder: 16-track playback, 4-track simultaneous recording, WAV file format 16 bit/24 bit |
| Additional Controls: Joystick, switches 1 & 2 — ARP Controller Section: Switches = ON/OFF, LATCH — Knobs = gate, Velocity, Length, Swing, Tempo — DRUM Controller Section: Switches = ON/OFF — Knobs = Swing, Drum SD, Tempo |
| Polyphony: HD-1: 140 voices — AL-1: 80 voices — CX-3: 200 voices — STR-1: 40 voices — MS-20EX: 40 voices — PolysixEX: 180 voices — MOD-7: 52 voices — SGX-2: 100 voices — EP-1: 104 voices |
| Sounds: User Memory Programs: 2,560 (1,920 [1,280 HD-1 + 640 EXi] preloaded) — User Memory Combinations: 1,792 (256 preloaded) — User Memory Drum Kits: 264 (104 preloaded) — Preset Programs: 256 GM Level 2 Preset Programs + 9 GM Level 2 drum preset programs |
| Effects: Insert Effects: 12, Stereo in / stereo out — Master Effects: 2, Stereo in / stereo out — Total Effects: 2, Stereo in / stereo out — Timbre/Track EQ: One 3-band EQ for each timbre/track — Effect Types: 197 different Effect types — Modulation: Dynamic Modulation and Common LFO — Effects Control Busses: Stereo side-chaining for compressors, gates, vocoders, etc. — Effect Presets: 783, Maximum 32 per 1 effect (Preset User) |
| Sequencer: 16-track MIDI sequencer + 16-track hard disk recorder + 1 master track |
| Sampling: Open Sampling System (resampling, In-Track sampling) — Bit/Frequency RAM: 16bit/48kHz Stereo/Mono Sampling; Drive: 16 or 24 bit/48kHz — Sampling Time: RAM: Depends on the amount of available PCM RAM; Drive: Maximum of 80 minutes stereo (879 MB: 16bit) — Samples: 16,000 samples/4,000 multisamples (128 indexes per multisample) — Formats: Korg format, AKAI S1000/S3000, SoundFont 2.0, AIFF, and WAVE — Editing: Time Stretch, Time Slice, Crossfade Loop, and other standard editing features |
| Storage: 60 GB SSD |
| Memory: PCM RAM capacity About 2 GB |
| Audio Inputs: Audio Inputs 1 and 2: 1/4" TRS Balanced — USB B: 2 Channels |
| Audio Outputs: (MAIN) L/MONO, R: 1/4" TRS balanced — (INDIVIDUAL) 1–4: 1/4" TRS balanced — USB B: 2 channels |
| Headphone Output: 1/4" stereo phone jack |
| USB: USB A (TYPE A) x 2 For connection to QWERTY keyboards, MIDI controllers, ethernet adapters, and storage devices — USB B (TYPE B) x 1 MIDI/audio interface; MIDI: 1 (16 channel) input / 1 (16 channel) output; Audio: 2 channel input / 2 channel output — 2 x USB 2.0 High-Speed ports (supports 480 Mbps) |
| MIDI I/O: In, Out, Thru |
| Pedal/Control Inputs: Damper pedal (half damper supported), assignable switch, assignable pedal |
| Package Contents |
|---|
|
