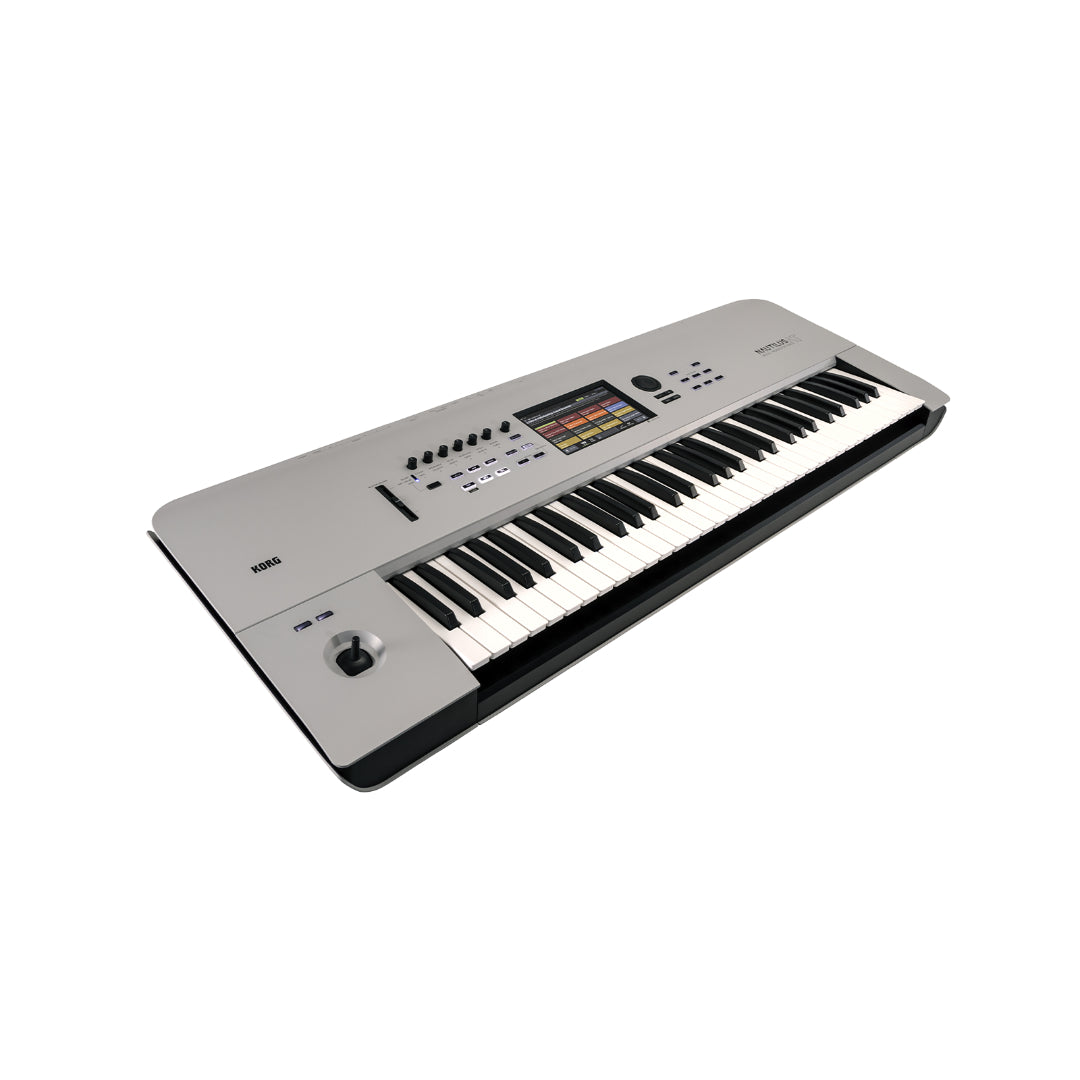

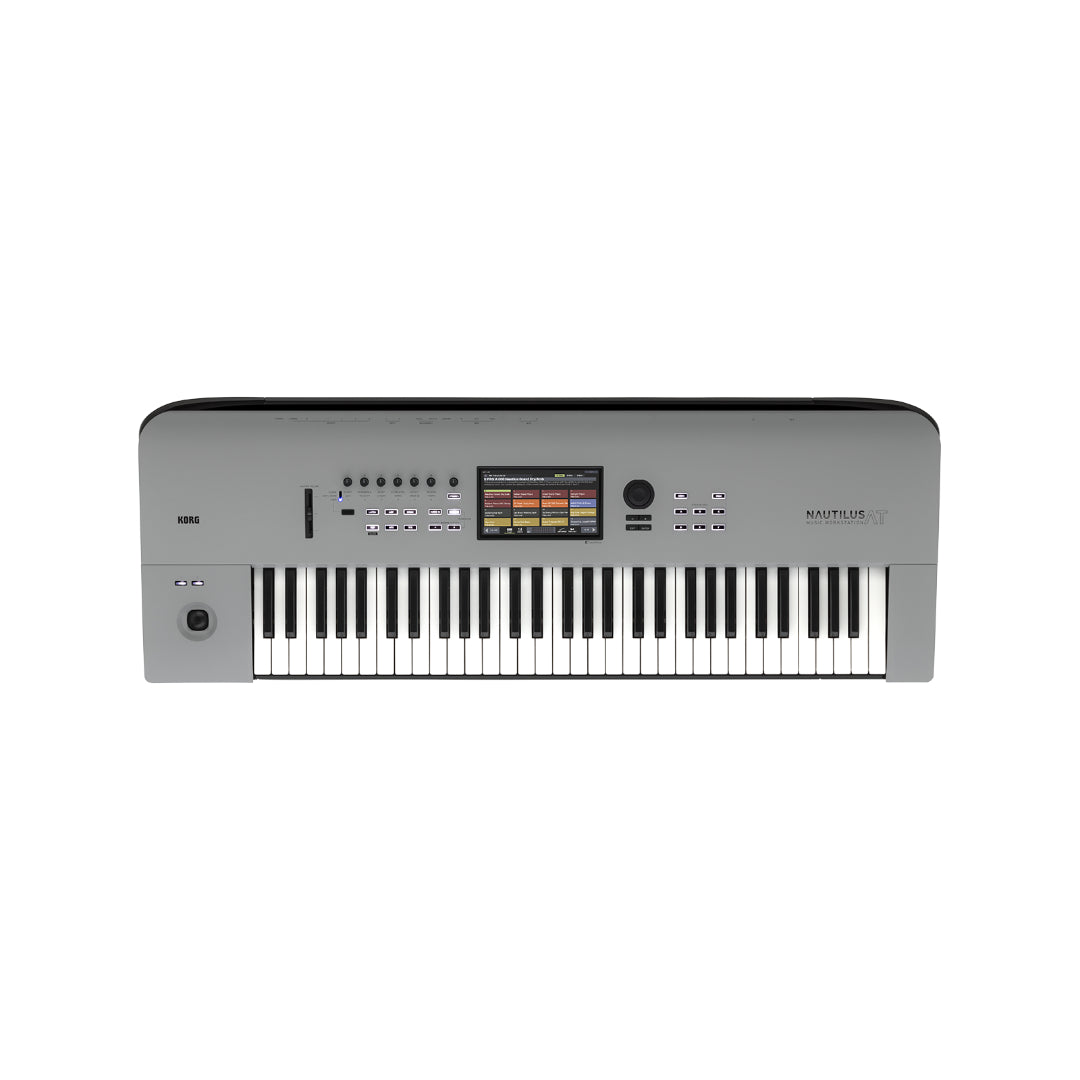

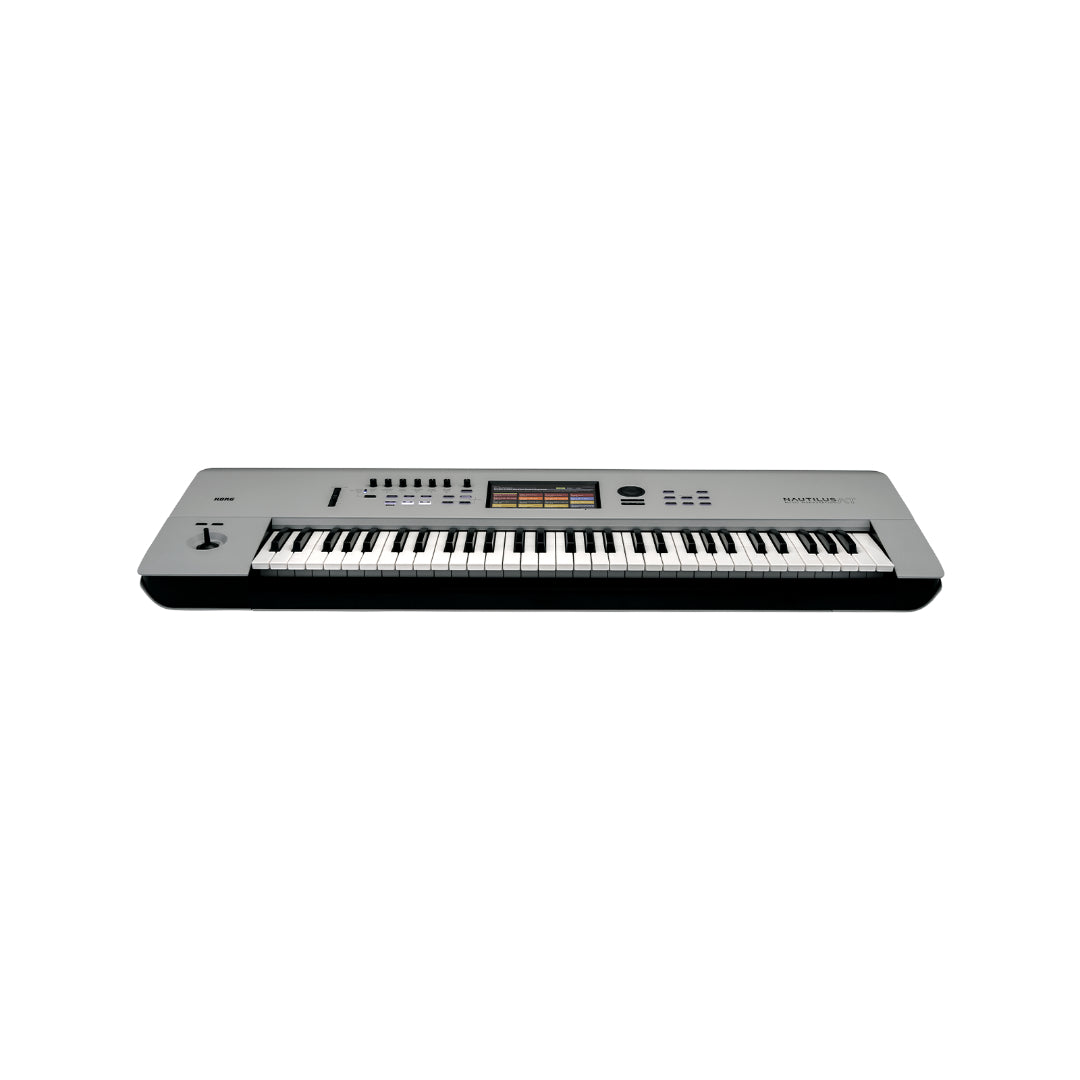

KORG NAUTILUS61AT GR MUSIC WORKSTATION
NINE DEDICATED SOUND ENGINES WITH AFTERTOUCH — The Nautilus 61AT GR houses nine professional sound engines including ...
Read More
Couldn't load pickup availability
NINE DEDICATED SOUND ENGINES WITH AFTERTOUCH — The Nautilus 61AT GR houses nine professional sound engines including SGX-2 Premium Piano, AL-1 Analog Synthesizer, CX-3 Tonewheel Organ, and MOD-7 VPM Synthesizer, all with full aftertouch expression on every key for nuanced live performance.
TOUCHVIEW 7-INCH COLOR TOUCHSCREEN INTERFACE — A 7-inch WVGA TFT TouchView display with 800 x 480 resolution and touch-drag control delivers fast, intuitive navigation across thousands of programs, combinations, effects, and sequencer tracks with adjustable brightness for any stage or studio environment.
16-TRACK MIDI AND 16-TRACK AUDIO RECORDER ON 60GB SSD — A complete production suite combines a 16-track MIDI sequencer with a 16-track hard disk recorder and 1 master track, all running from a built-in 60GB SSD for up to 80 minutes of stereo audio recording at 16 or 24-bit quality.
197-TYPE EFFECT PROCESSING WITH 32 SIMULTANEOUS EQS — Twelve insert effects, two master effects, and two total effects deliver 197 usable effect types, with a dedicated 3-band EQ per timbre and track — providing 32 simultaneous EQs — and 783 recallable effect presets for complete mix control.
LIMITED EDITION MATTE GRAY WITH OPEN SAMPLING SYSTEM — This exclusive limited edition finish features a cohesive gray top and bottom panel design, paired with an Open Sampling System supporting Korg, AKAI S1000/S3000, SoundFont 2.0, AIFF, and WAVE formats across 16,000 samples and 4,000 multisamples.
| Product Details | |
|---|---|
| Barcode | 4959112243545 |
| Model | NAUTILUS61AT GR |
| Country of Origin | Japan |
| Color | Matte Gray |
| Dimensions | 121.6 × 48.9 × 23.7 CM |
| Item Weight | 23.49 KG |
| Series | Nautilus Series |
| Series | Nautilus Series |
| Tech Specs |
|---|
| Type: Music Workstation |
| System: NAUTILUS System Version 1.0 |
| Sound Engine: 9 different engines — HD-1 High Definition Synthesizer (PCM), AL-1 Analog Synthesizer (Analog Modeling), CX-3 Tonewheel Organ (Tonewheel Organ Modeling), STR-1 Plucked String (Physical Modeling), MS-20EX Component Modeling Technology (Analog Modeling), PolysixEX Component Modeling Technology (Analog Modeling), MOD-7 Waveshaping VPM Synthesizer (VPM Synthesis), SGX-2 Premium Piano (Acoustic Piano), EP-1 MDS Electric Piano (Electric Piano) |
| Keyboard: 61-key, Natural Touch Semi-Weighted |
| Aftertouch: Yes |
| Velocity Sensitivity: Yes |
| Display: TouchView graphical user interface, 7-inch TFT, WVGA (800 x 480 dots), adjustable brightness |
| Audio Recorder: 16-track playback, 4-track simultaneous recording, WAV file format 16-bit/24-bit |
| Additional Controls: Joystick, Switches 1 & 2; ARP Controller Section: Switches = ON/OFF, LATCH; Knobs = Gate, Velocity, Length, Swing, Tempo; DRUM Controller Section: Switches = ON/OFF; Knobs = Swing, Drum SD, Tempo |
| Polyphony: HD-1: 140 voices; AL-1: 80 voices; CX-3: 200 voices; STR-1: 40 voices; MS-20EX: 40 voices; PolysixEX: 180 voices; MOD-7: 52 voices; SGX-2: 100 voices; EP-1: 104 voices |
| Sounds: User Memory Programs: 2,560 (1,920 preloaded); User Memory Combinations: 1,792 (256 preloaded); User Memory Drum Kits: 264 (104 preloaded); Preset Programs: 256 GM Level 2 + 9 GM Level 2 drum preset programs |
| Effects: Insert Effects: 12, stereo in/stereo out; Master Effects: 2, stereo in/stereo out; Total Effects: 2, stereo in/stereo out; Timbre/Track EQ: 3-band EQ per timbre/track; Effect Types: 197 types; Dynamic Modulation and Common LFO; Stereo side-chaining for compressors, gates, vocoders; Effect Presets: 783, maximum 32 per effect |
| Sequencer: 16-track MIDI sequencer + 16-track hard disk recorder + 1 master track |
| Sampling: Open Sampling System (resampling, In-Track sampling); RAM: 16-bit/48kHz stereo/mono; Drive: 16 or 24-bit/48kHz; Sampling time RAM: depends on available PCM RAM; Drive: maximum 80 minutes stereo (879MB, 16-bit); 16,000 samples / 4,000 multisamples (128 indexes per multisample); Formats: Korg, AKAI S1000/S3000, SoundFont 2.0, AIFF, WAVE; Editing: Time Stretch, Time Slice, Crossfade Loop |
| Storage: 60 GB SSD |
| Memory: PCM RAM capacity approximately 2 GB |

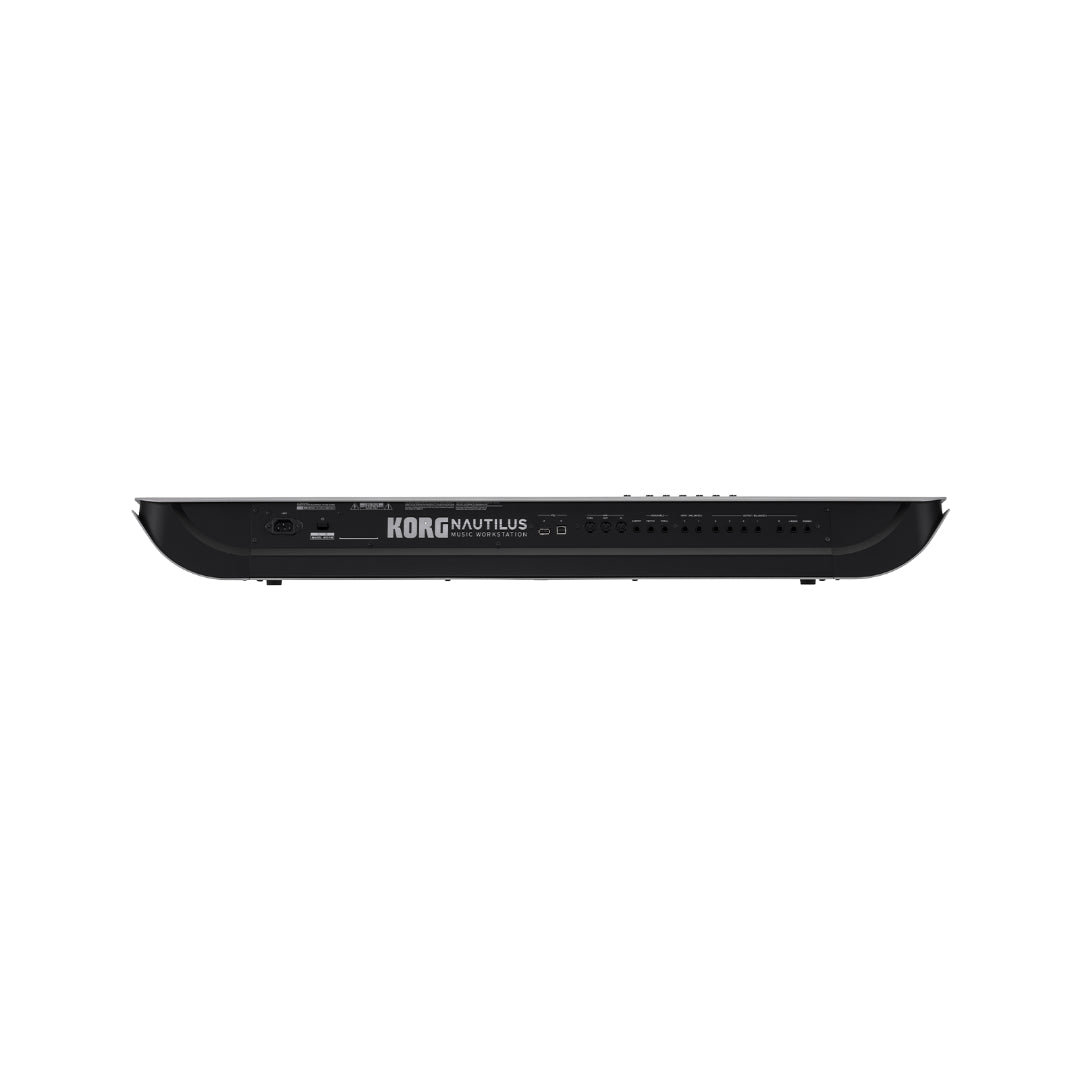

| Audio Inputs: Audio Inputs 1 and 2: 1/4" TRS Balanced; USB B: 2 channels |
| Audio Outputs: (MAIN) L/MONO, R: 1/4" TRS balanced; (INDIVIDUAL) 1–4: 1/4" TRS balanced; USB B: 2 channels |
| Headphone Output: 1/4" stereo phone jack |
| USB: USB Type A x 2 (for QWERTY keyboards, MIDI controllers, ethernet adapters, storage devices); USB Type B x 1 (MIDI/audio interface: 1 x 16-channel MIDI input/output; Audio: 2-channel input/2-channel output); 2 x USB 2.0 High-Speed (480 Mbps) |
| MIDI I/O: In, Out, Thru |
| Pedal/Control Inputs: Damper pedal (half damper supported), Assignable Switch, Assignable Pedal |
| Special Features 1: AfterTouch |
