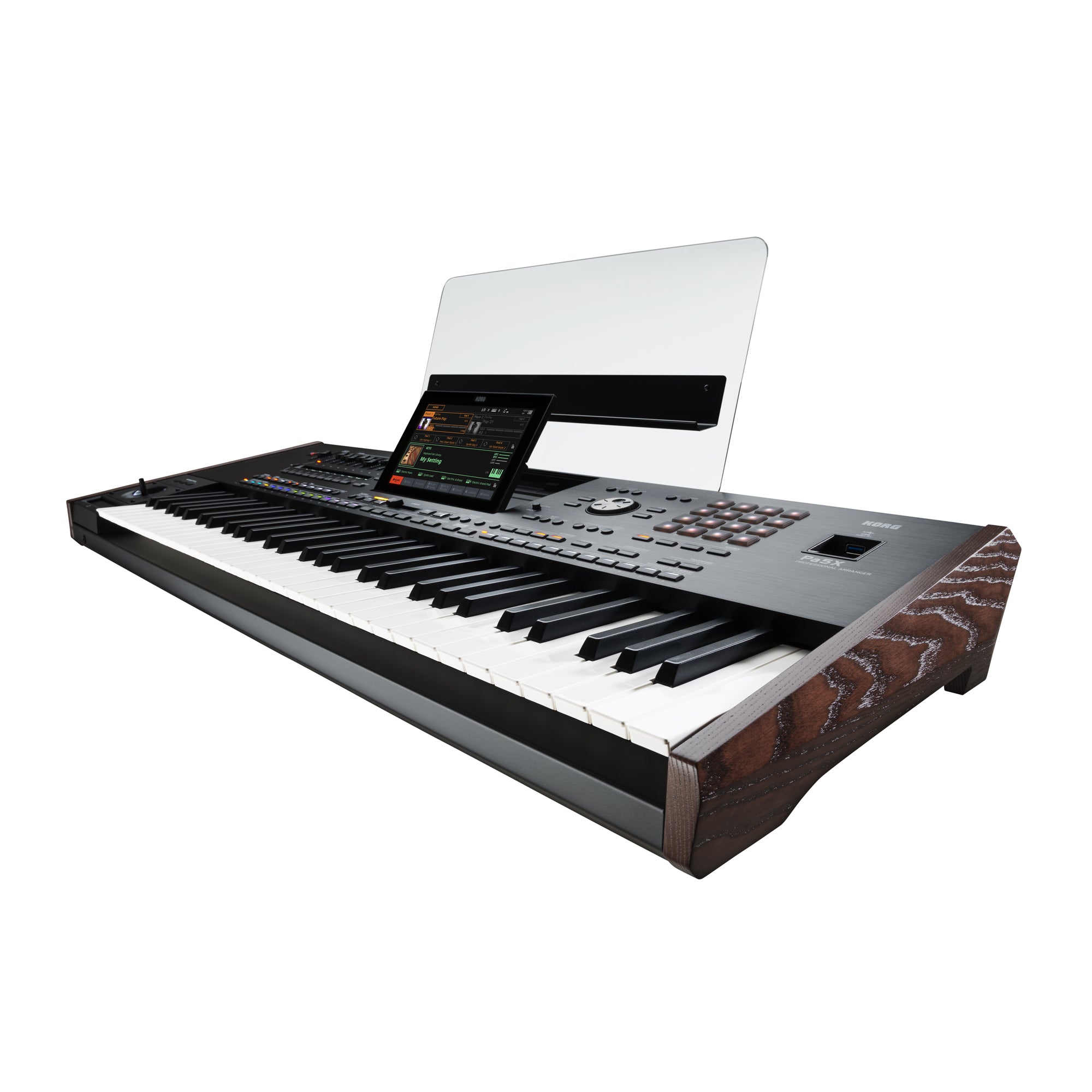

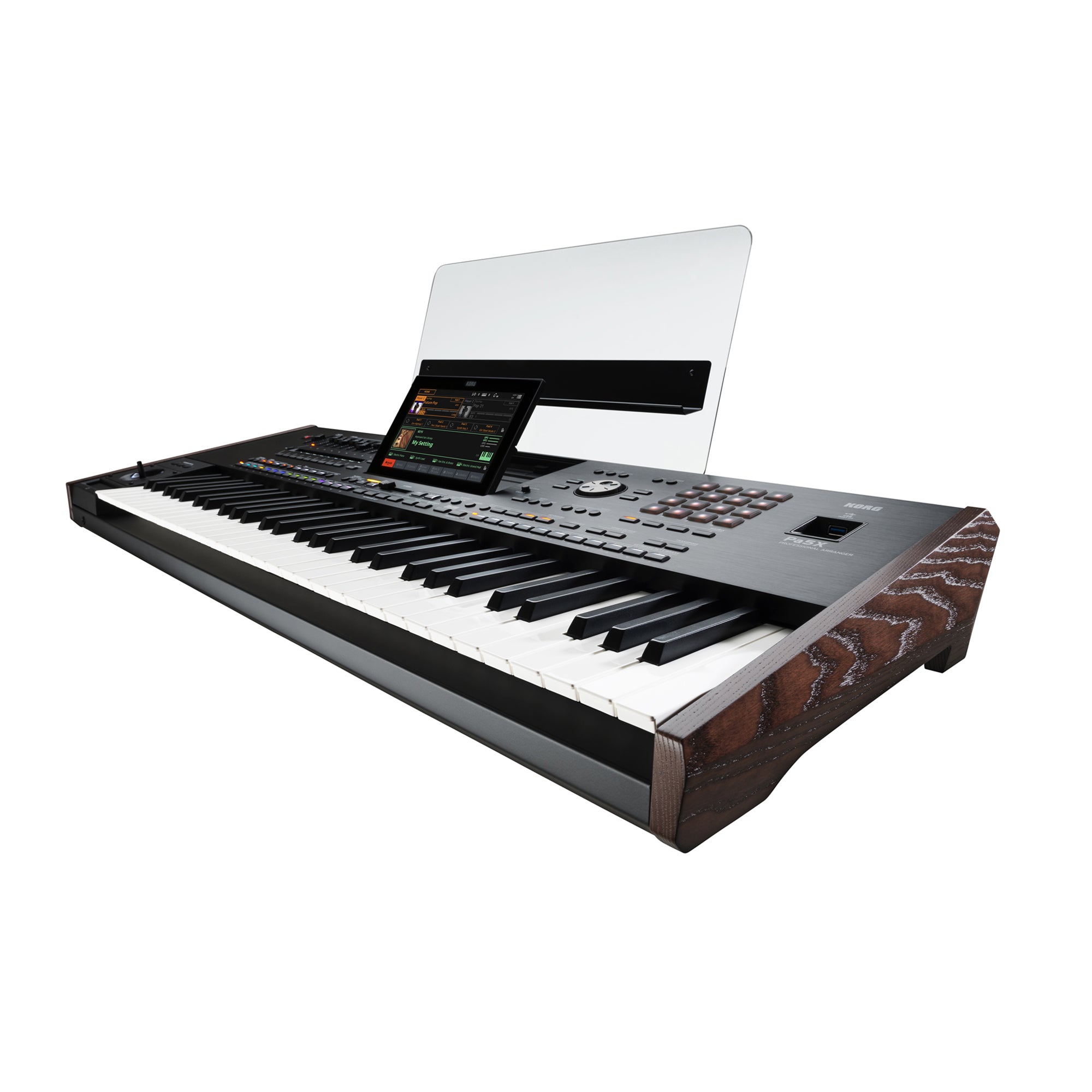

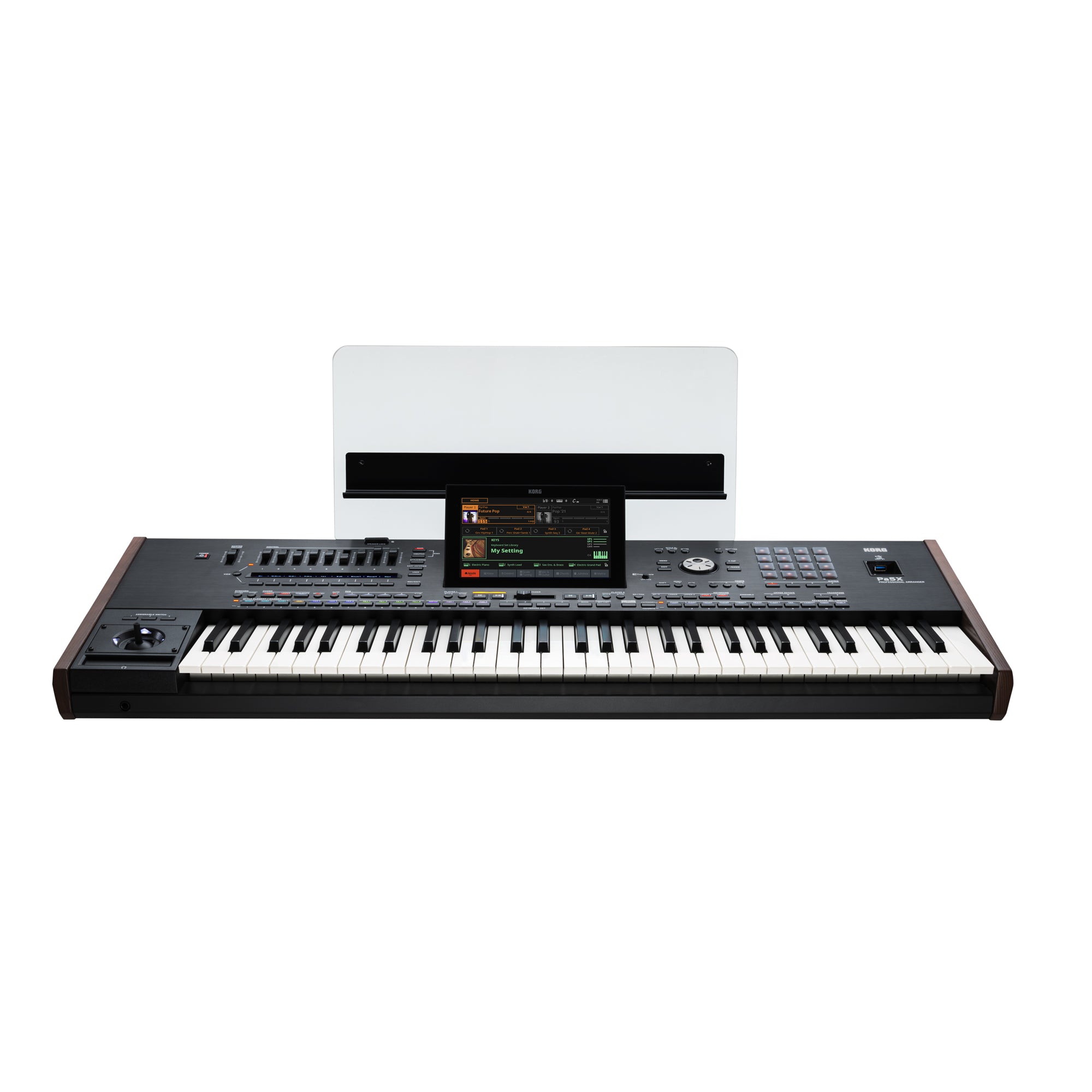

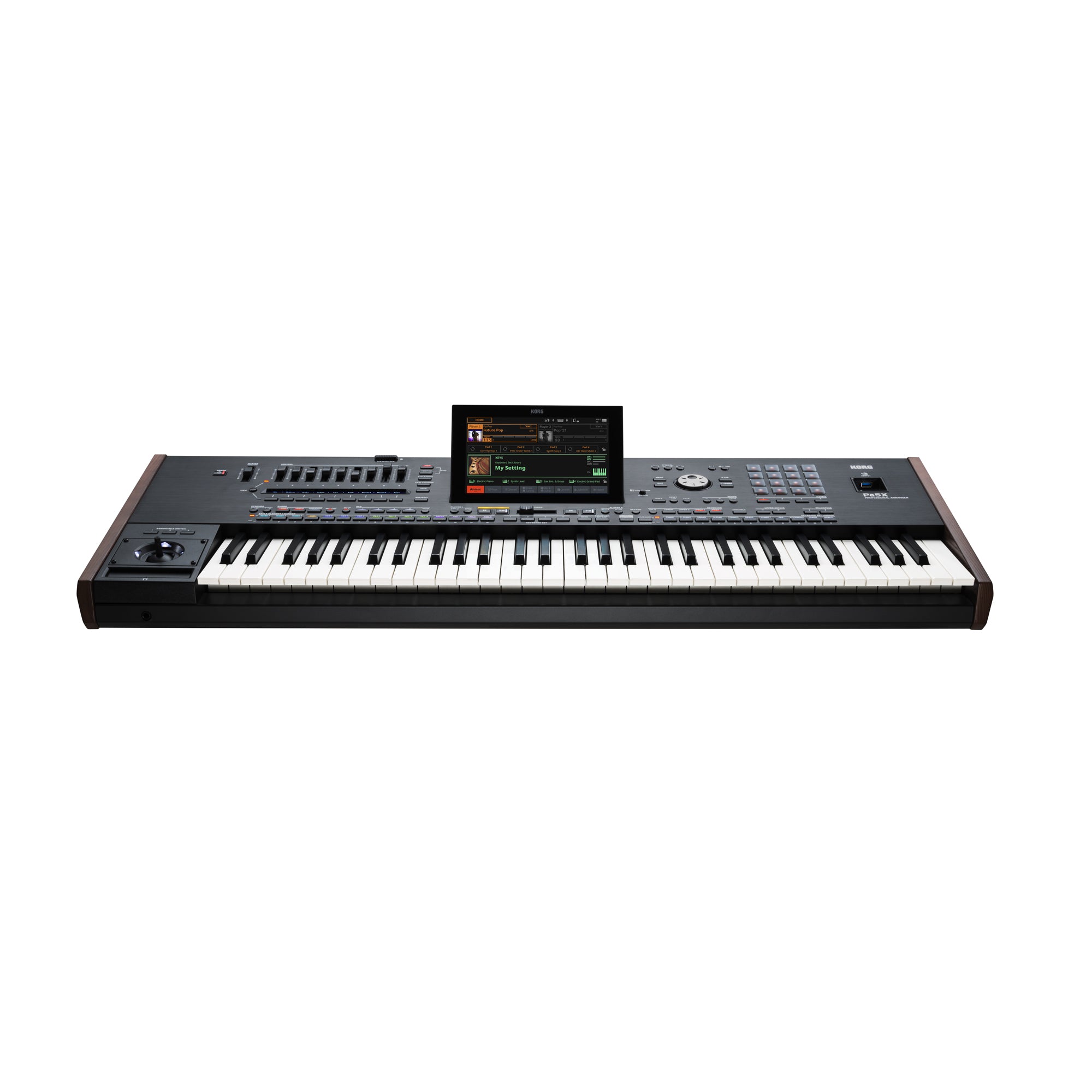

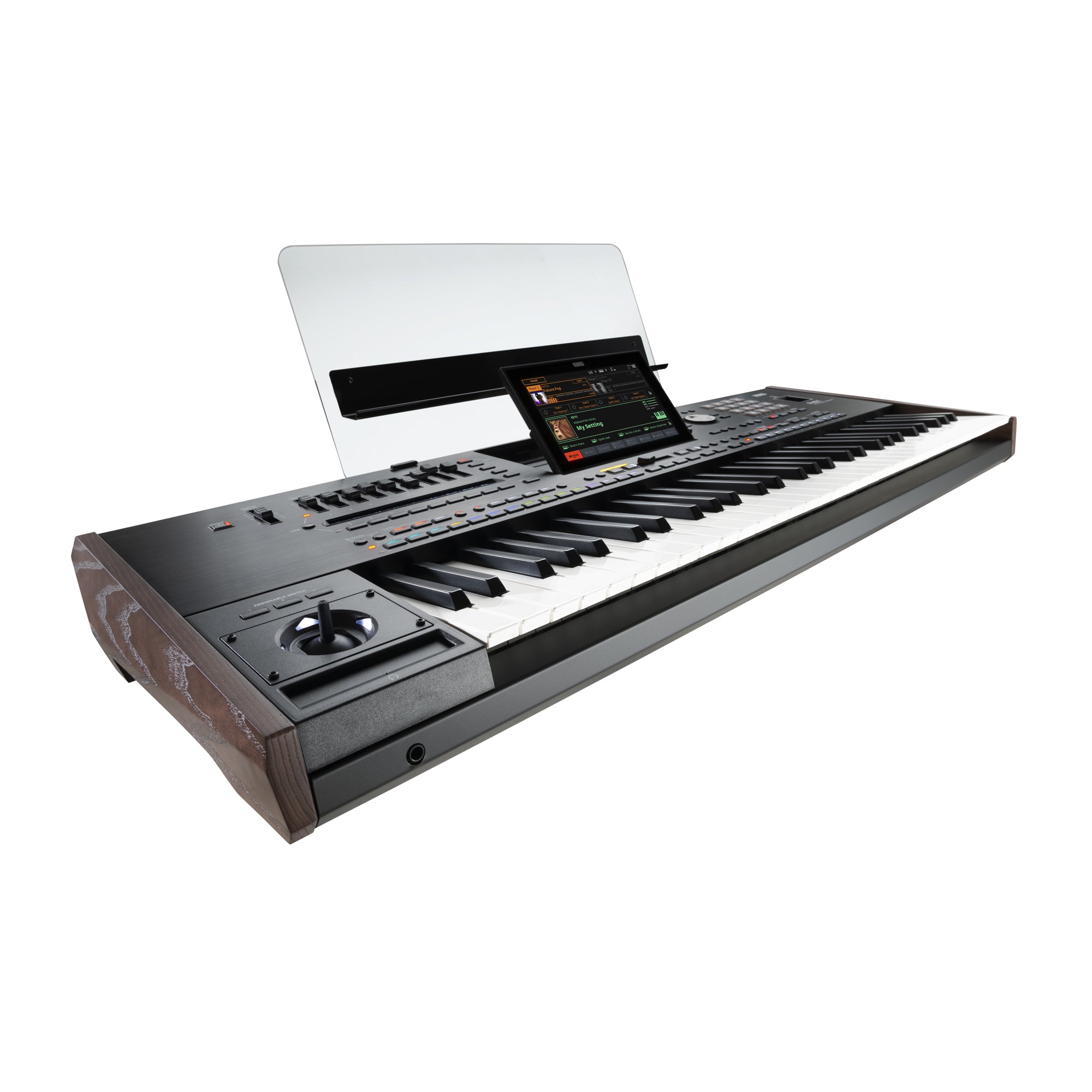

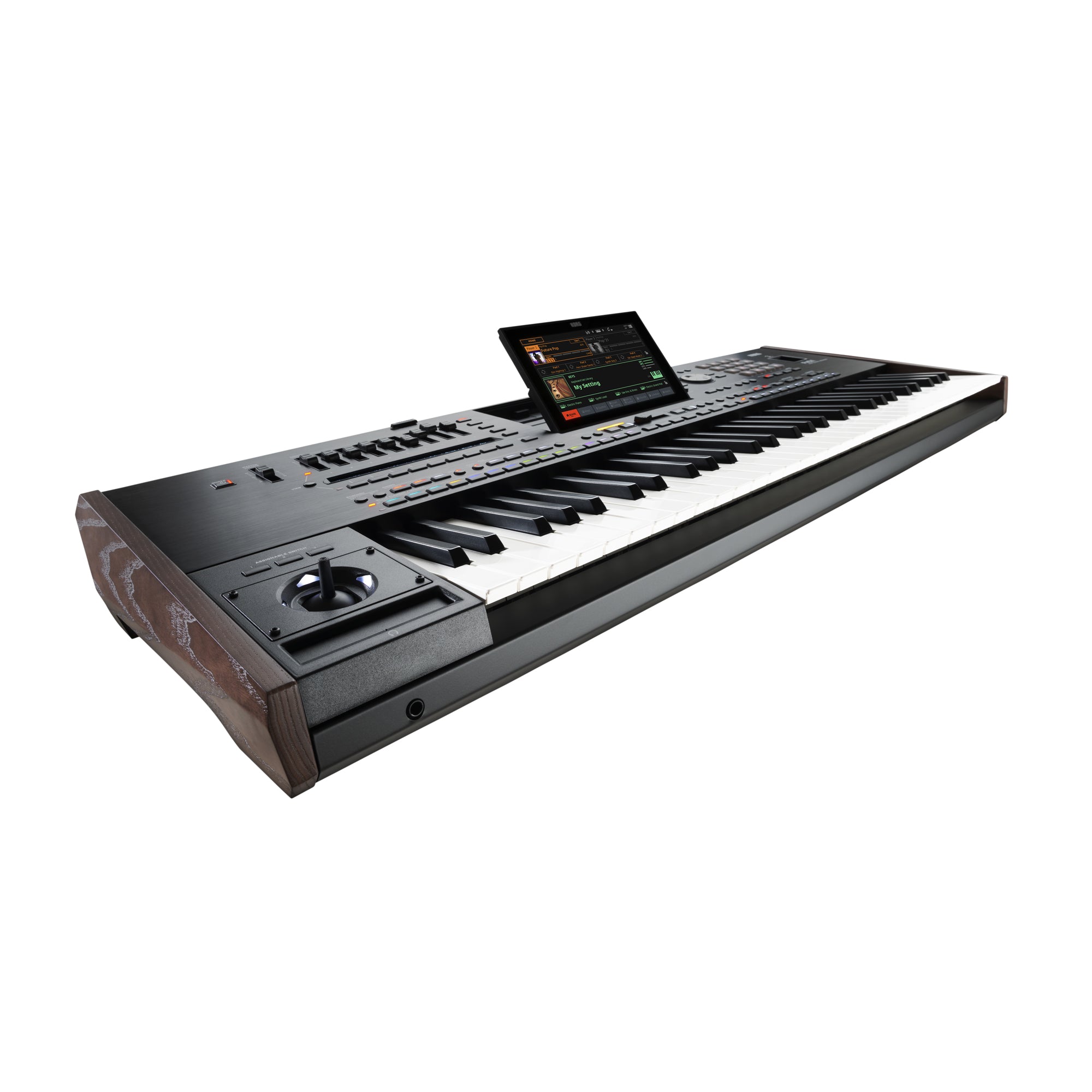

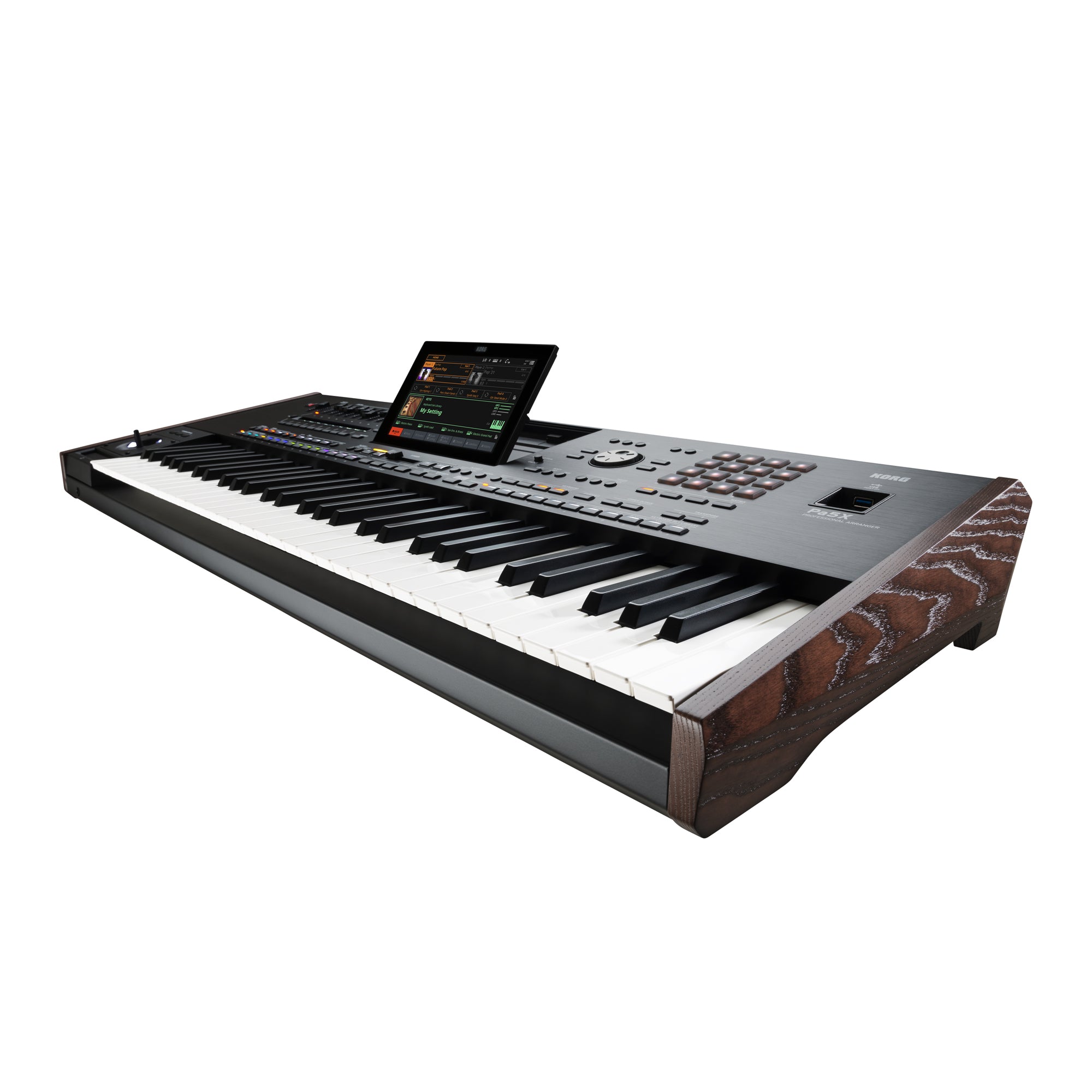

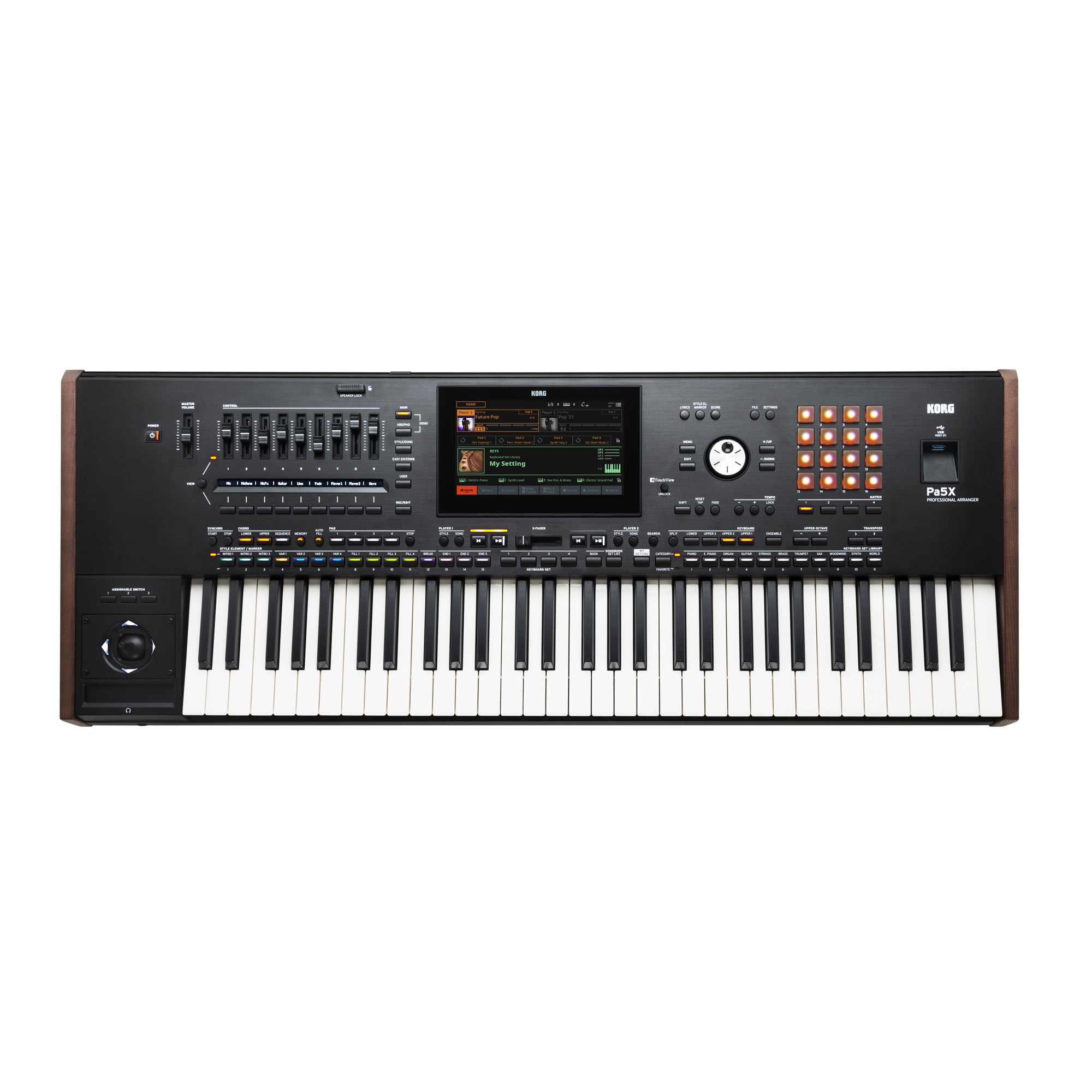

KORG PA5X-61 Professional Arranger Keyboard
EDS-XP ENGINE WITH 2,200+ FACTORY SOUNDS — The Korg PA5X-61 is powered by the flagship EDS-XP Enhanced Definition Syn...
Read More
Couldn't load pickup availability
EDS-XP ENGINE WITH 2,200+ FACTORY SOUNDS — The Korg PA5X-61 is powered by the flagship EDS-XP Enhanced Definition Synthesis-Expanded engine with 160-voice polyphony, multimode filters with resonance, per-track 3-band EQ, DNC articulation, and over 2,200 Factory Sounds including 130+ Drum Kits.
600+ FREELY PROGRAMMABLE FACTORY STYLES — Features more than 600 Factory Styles across eight Style Tracks with 4 Keyboard Sets and 4 Pads per Style, Guitar Mode 2, Parallel and Fixed NTT, and 500+ Factory Keyboard Sets — delivering the most comprehensive accompaniment library in the PA Series.
WAVES MAXXAUDIO MASTERING WITH 10 INSERT EFFECTS — Professional-grade processing includes 10 Insert Effects and 3 Master Effects for Style and Song tracks, 3 Insert Effects for Keyboard Tracks, Master EQ and Finalizer, and industry-standard Waves MaxxAudio final mastering for a polished, studio-quality output.
8-INCH TILTABLE TOUCHVIEW WITH 9 ASSIGNABLE SLIDERS — The large 8-inch capacitive TFT TouchView display with 800 x 480 resolution and adjustable tilt combines with 9 Assignable Sliders, 9 Assignable Buttons, joystick, ribbon controller, and virtual matrices for complete real-time performance control.
DEDICATED MIC, GUITAR INPUTS & HDMI OUTPUT — Featuring a balanced XLR combo microphone input with Phantom Power, a dedicated guitar input, four balanced separate audio outputs, HDMI out, USB 3.0 Host ports, and 16 User-definable MIDI Presets for a fully connected professional performance setup.
| Product Details | |
|---|---|
| Barcode | 4959112236837 |
| Model | PA5X-61 |
| Country of Origin | Italy |
| Color | Black |
| Dimensions | 113.5 × 49.6 × 28.7 CM |
| Item Weight | 26.93 KG |
| Series | PA Series |
| Series | PA Series |
| Tech Specs |
|---|
| Type: Professional Arranger |
| System: Proprietary Korg operating system |
| Sound Engine: EDS-XP (Enhanced Definition Synthesis-Expanded) — Multimode filters with resonance, 3-band EQ for each track — Korg DNC (Defined Nuance Control) |
| Keyboard: 61 Key Semi-Weighted |
| After Touch: Yes |
| Velocity Sensitivity: Yes |
| Display: 8" Wide capacitive color TouchView TFT display, 800 x 480 resolution, Tiltable |
| Audio Recorder: MP3 Recorder |
| Additional Controls: 9 Assignable Sliders, 9 Assignable Buttons — Joystick — Ribbon controller — Virtual matrices — Faders and switches — KORG DNC (Defined Nuance Control) |
| Polyphony: 160 Voices, 160 Oscillators |
| Sounds: 2,200+ Factory Sounds, GM/XG Sound Sets and 130+ Drum Kits — User: 768 Sounds, 384 Drum Kits |
| Styles: Factory: More than 600 Factory Styles, freely programmable — Eight Style Tracks, 4 Keyboard Sets and 4 Pads per Style; Programmable Sounds, Effects and Style parameters — Guitar Mode 2, Parallel and Fixed NTT (Note Transposition Table) |
| Number of Presets/Sets: Factory: More than 500 Factory Keyboard Sets, freely programmable — Combines four Keyboard Sounds, plus Effects and settings |
| Effects: Keyboard Tracks: 3 Insert Effects; 3 Master Effects — Style/Song: 10 Insert Effects; 3 Master Effects — Master EQ and Finalizer for Songs and Styles — Final Mastering Effects: Waves MaxxAudio |
| Sequencer: 16-track MIDI sequencer — Chord sequencer |
| Sampling: Loads KORG, WAV, AIFF and SoundFont formats — Saves KORG, WAV and AIFF formats — Full Edit, Time Slice, Sampling features |
| Storage: 1 GB |
| Memory: User PCM Sample memory: 4 GB of data, equivalent to 8 GB linear when compressed |

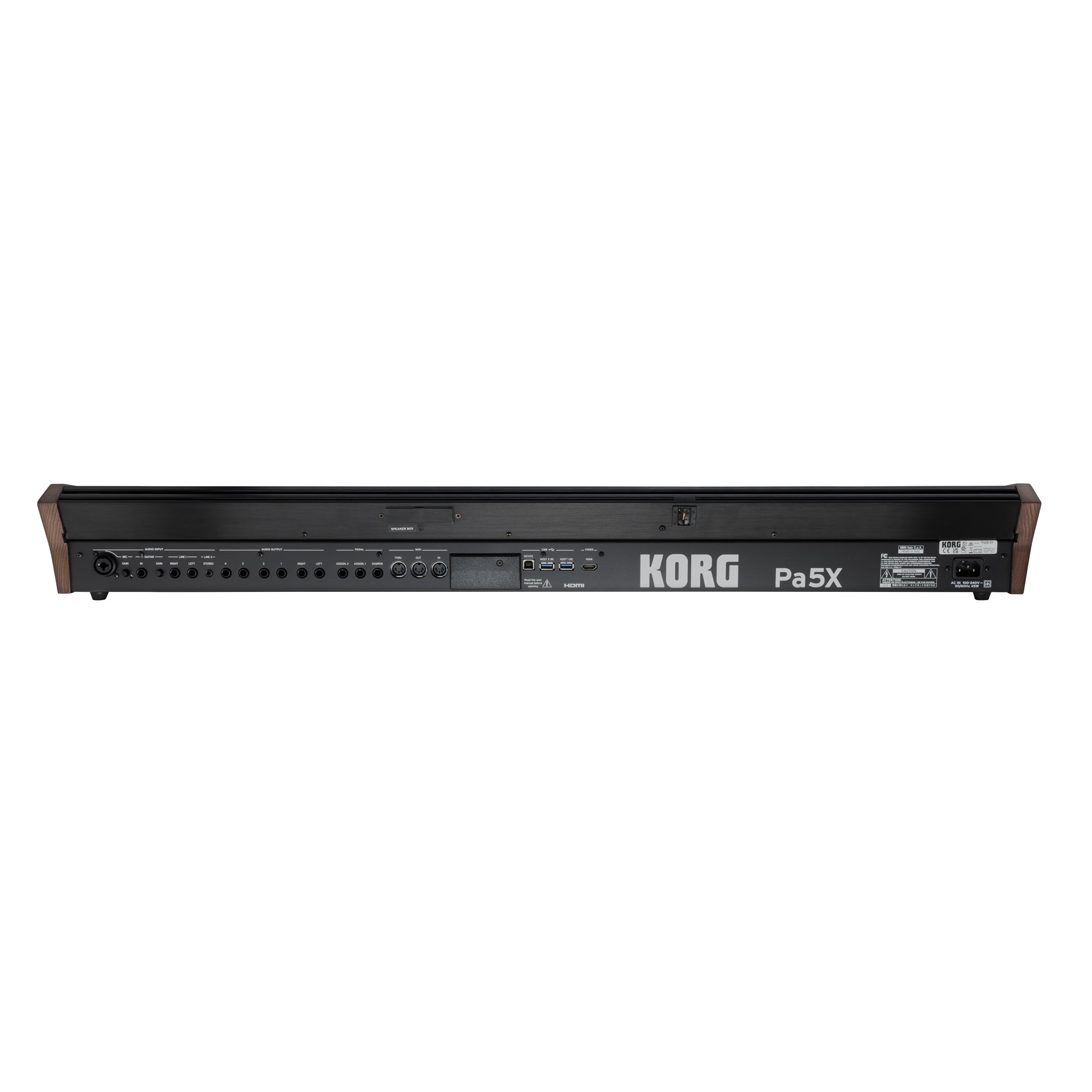

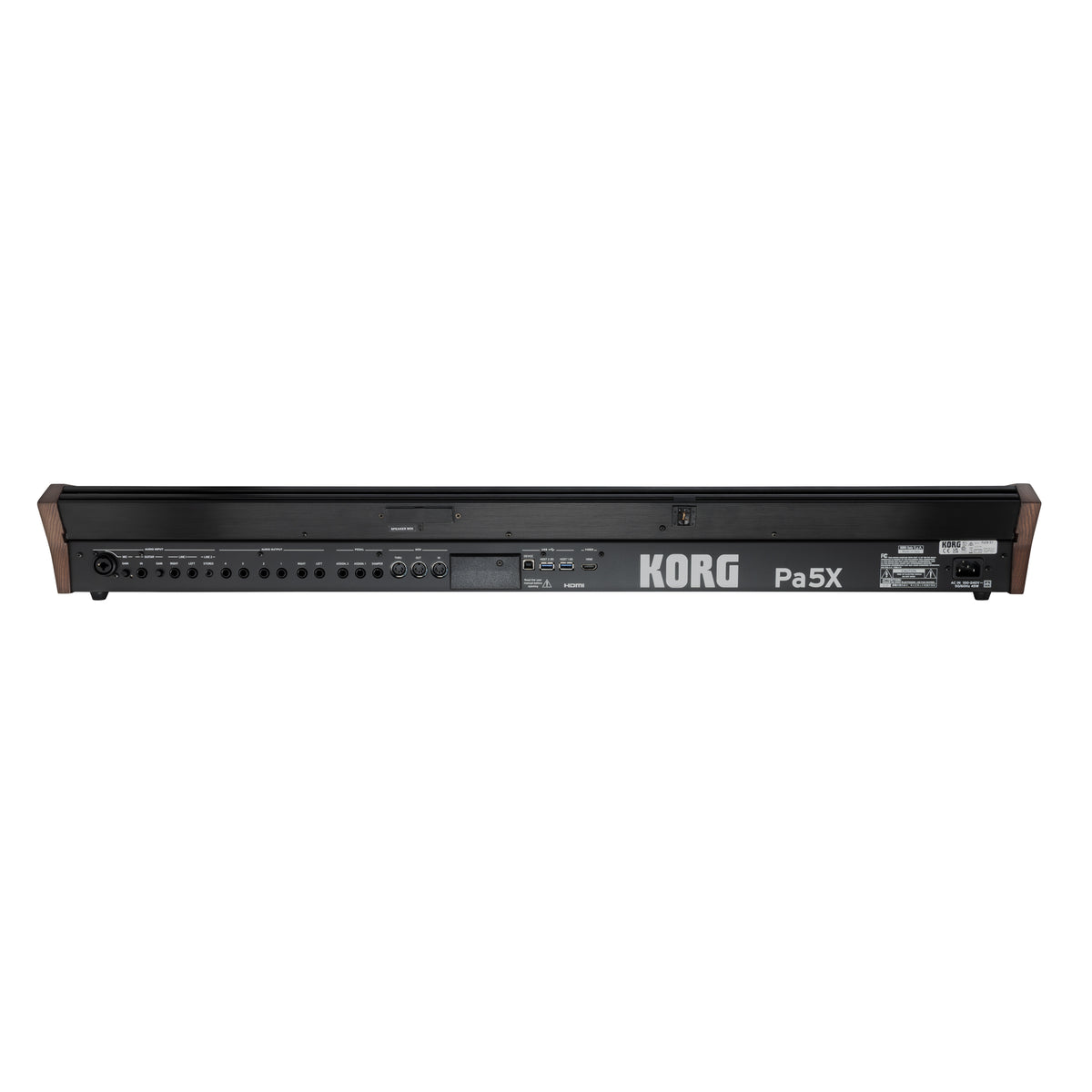

| Audio Inputs: Mic: Mono with Gain control and Phantom Power (Combo XLR, balanced) — Guitar: Mono with Gain control (1/4" jack, unbalanced) — Line 1: Left/Right (1/4" jacks, balanced) — Line 2: Stereo (1/8" mini-jack, unbalanced) |
| Audio Outputs: Line: Main Left/Right, Separate Outs 1/2/3/4 (1/4" jacks, balanced) |
| Headphone Output: 1/4" stereo phone jack |
| USB: Type A (Host 3.0, for storage devices and controllers): 1 front, 2 rear — Type B (Device 2.0, for personal computers and tablets): 1 rear |
| MIDI I/O: IN, OUT, THRU standard MIDI connectors — USB to MIDI, through the USB Device port — 16 User-definable MIDI Presets |
| Pedal/Control Inputs: Damper pedal, and 2 assignable |
| Special Features 1: Dedicated Microphone and Guitar input |
| Special Features 2: HDMI out |
