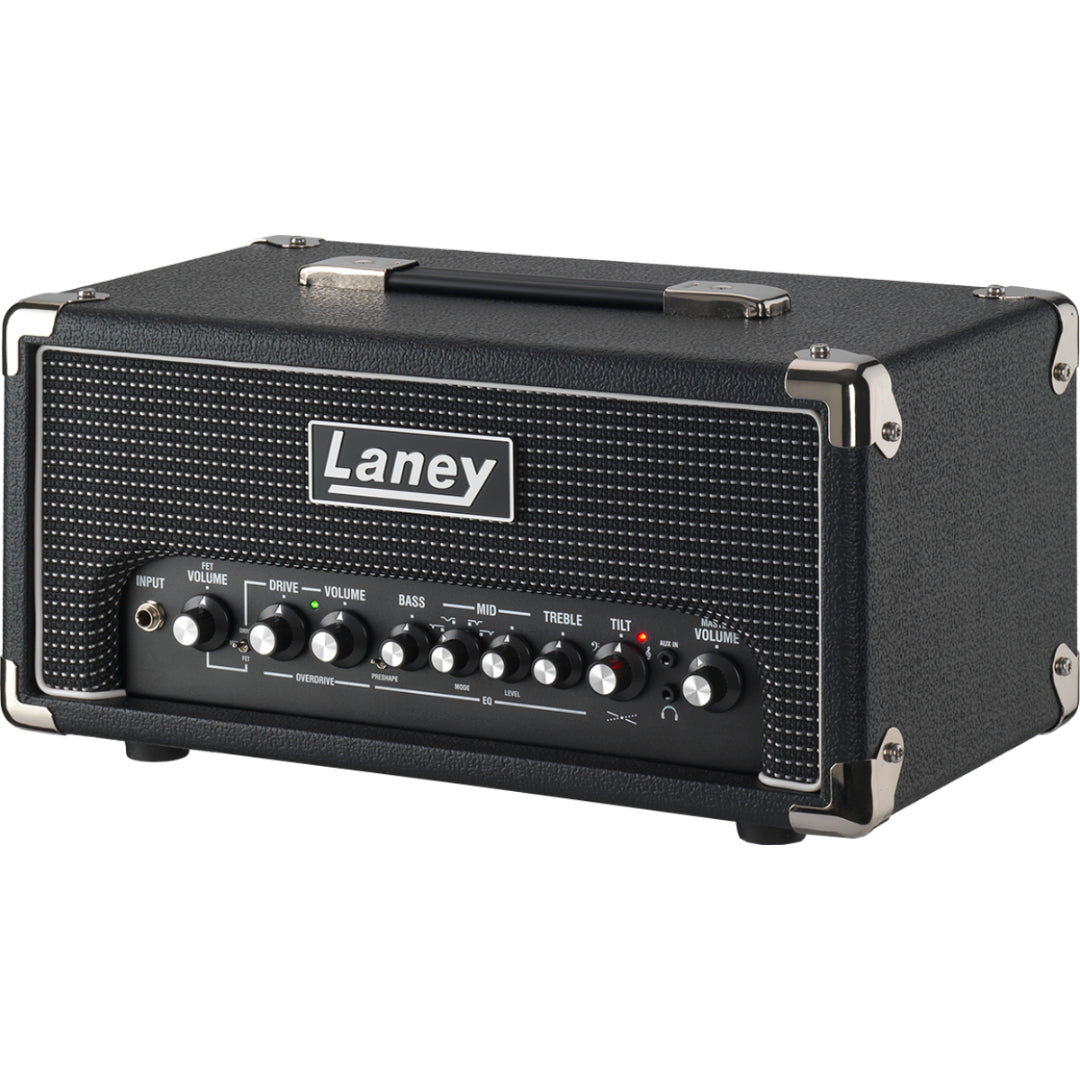

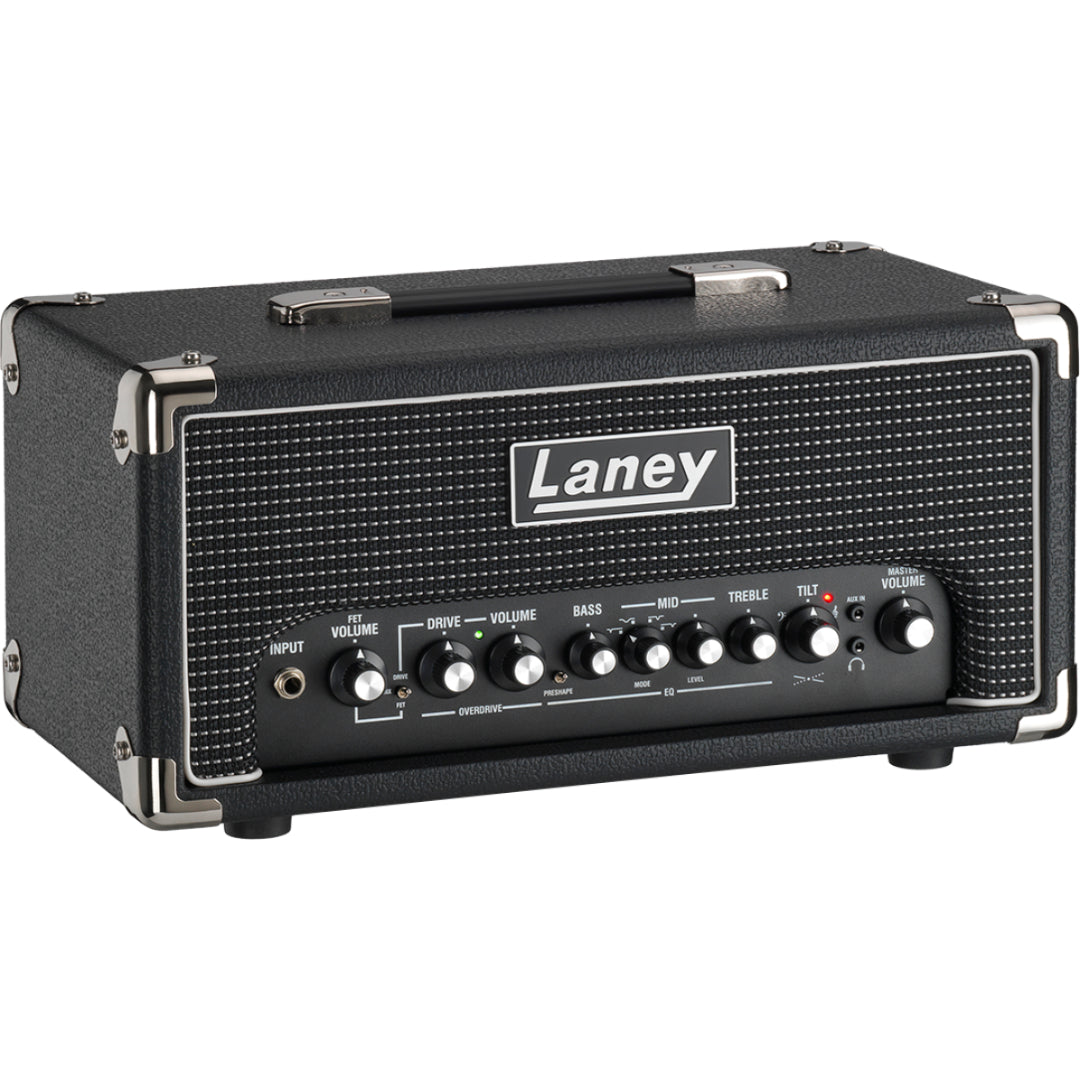

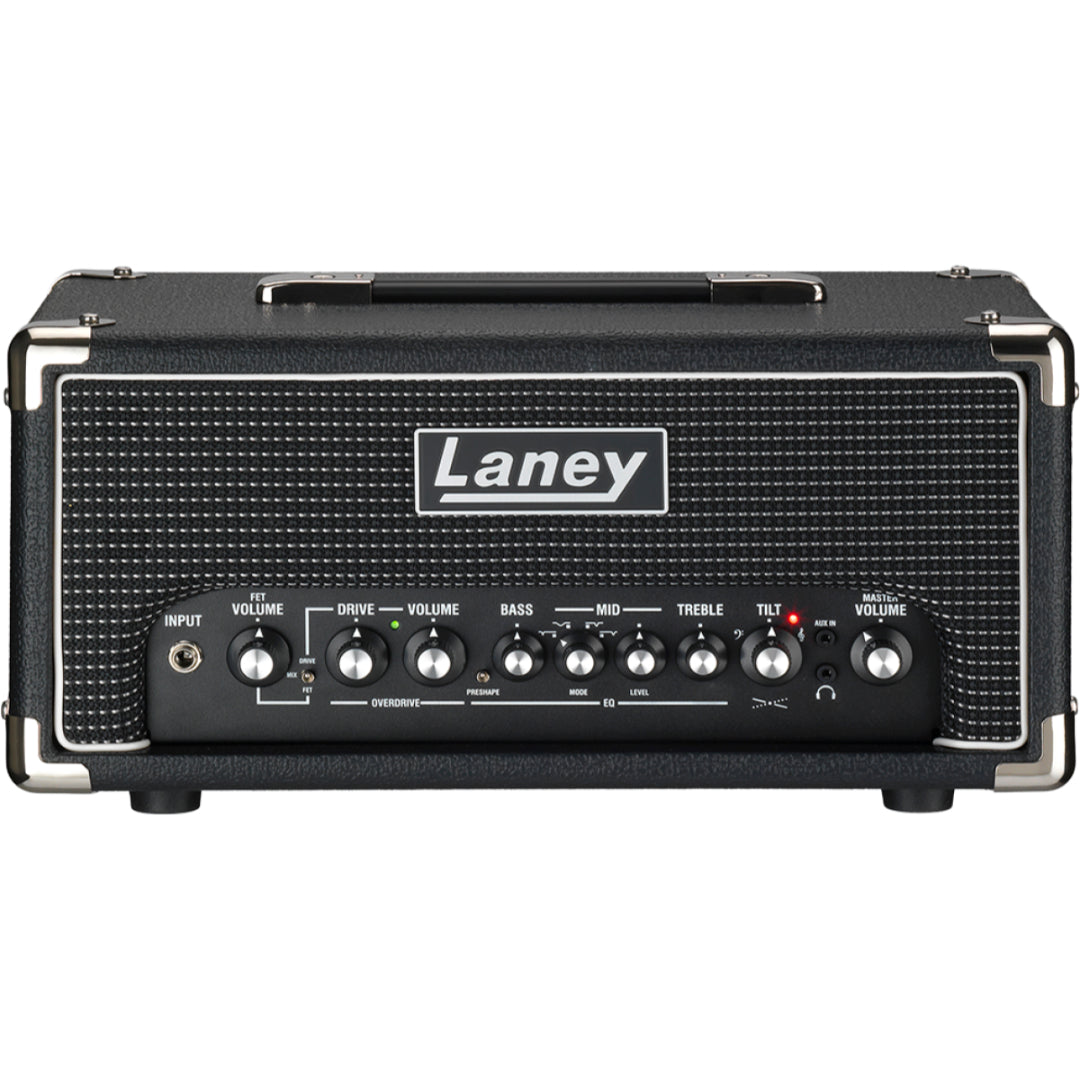

Laney Digbeth Foundry DBF200H - 200W Bass Amplifier Head
200W RMS OUTPUT — POWERFUL BASS PERFORMANCE — Delivering 200 watts RMS, the Laney Digbeth Foundry DBF200H provides am...
Read More
Couldn't load pickup availability
200W RMS OUTPUT — POWERFUL BASS PERFORMANCE — Delivering 200 watts RMS, the Laney Digbeth Foundry DBF200H provides amplification for bass guitar applications, making it suitable for rehearsals, studio use, and live performance setups.
DUAL FET & DRIVE CHANNELS — VERSATILE BASS TONES — The two-channel design features FET and Drive channels with mix options, allowing players to blend clean clarity with gritty drive for a range of bass tones.
PRESHAPE SWITCH & TILT FUNCTION — FLEXIBLE TONE SHAPING — The Preshape switch cuts mid frequencies to create a scooped sound while emphasizing the highs and lows. The Tilt function provides additional tonal adjustment to suit different playing styles.
3-BAND EQ WITH SWITCHABLE VOICINGS — PRECISE SOUND CONTROL — Bass and Treble controls provide ±12dB adjustment, while the Middle control offers ±12dB adjustment with four switchable voicing options. Master Volume allows convenient control of the overall output level.

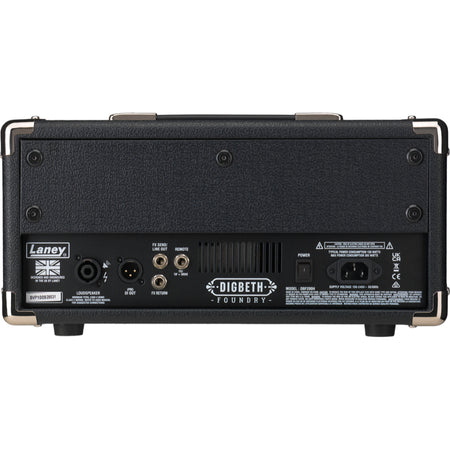

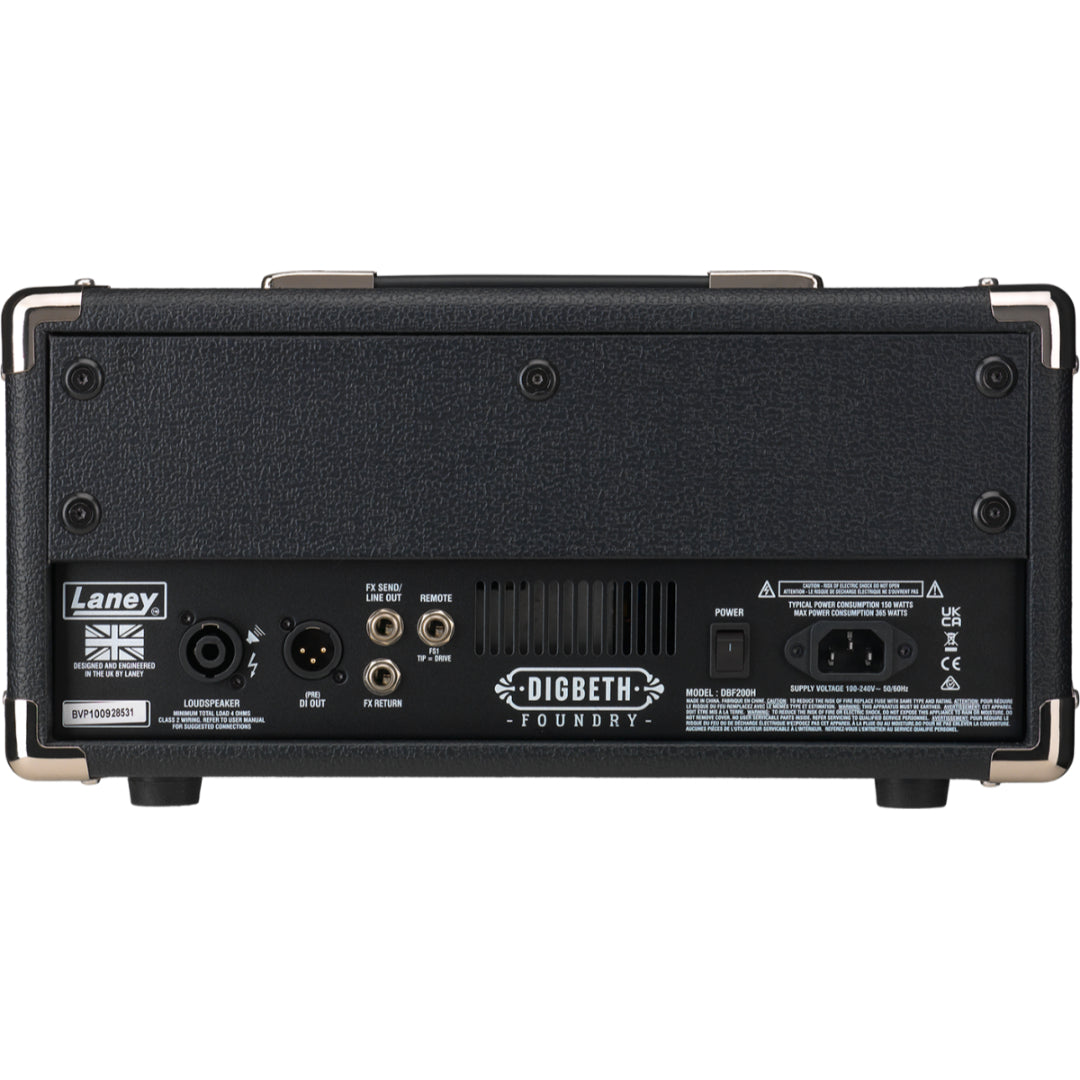

CONNECTIVITY & ROAD-READY CONSTRUCTION — PRACTICAL PERFORMANCE SETUP — Features include AUX input, a 3.5mm stereo headphone jack, FX loop, FX Send that doubles as a line output, and a balanced male XLR DI output before EQ. The 15mm plywood cabinet features a reinforced top-mounted steel strap handle, hard-wearing black vinyl, and steel corners. An internal universal 100–200V~ 50/60Hz switched-mode power supply and IEC C14 inlet complete the design. A remote socket supports the optional FS-1 MINI footswitch for Drive/Mix control.
| Product Details | |
|---|---|
| Barcode | 5060109459630 |
| Model | DBF200H |
| Country of Origin | China |
| Color | Black |
| Dimensions | 255 × 510 × 280 mm |
| Item Weight | 7.40 Kg |
| Series | Digbeth Foundry Series |
| Tech Specs |
|---|
| Type: Bass Amplifier Head |
| Frequency Response (-10 dB): 20 Hz–20 kHz |
| Power Rating: 400W Continuous, 200W RMS |
| Amplifier Type: Class D, with fully passive convection cooling for silent operation |
| Channels: Two Channels, FET and Tube with Mix Option; Footswitchable with Optional FS1-Mini Footswitch |
| Inputs: 6.3 mm (1/4") Jack Instrument Input, 3.5 mm Stereo Aux In, 6.3 mm (1/4") Jack FX Return |
| Input Impedance: 1 MΩ |
| Outputs: 3.5 mm Stereo Headphone Jack, 6.3 mm (1/4") Jack FX Send (Doubles as Line Out), Balanced Male XLR D.I. Output (Pre-EQ), speakON® Compatible Combi Jack Output Socket |

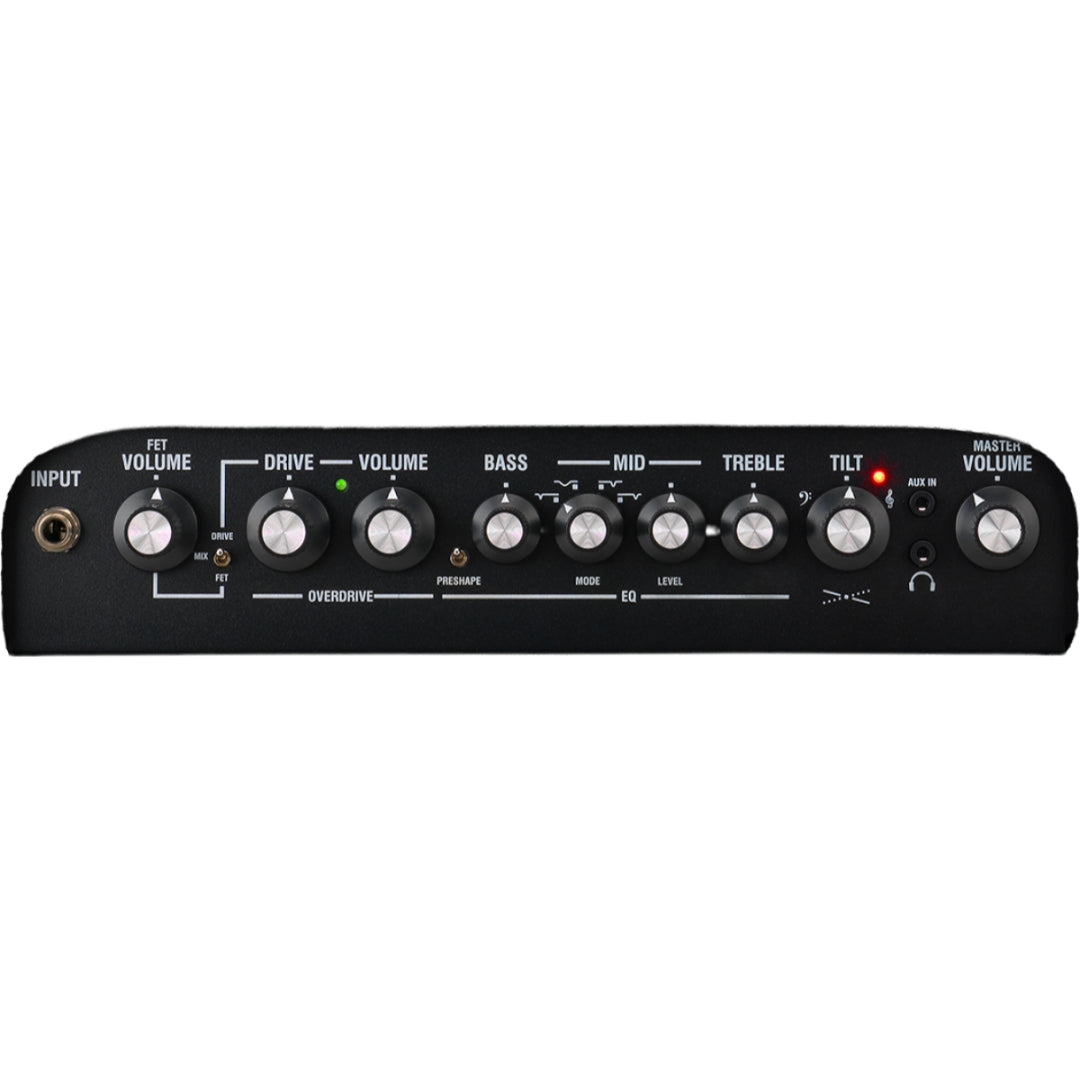

| Controls: FET Volume, Preshape Switch, Drive Switch with FET, Drive and Channel Mix Options, Drive, Drive Volume, Bass, Middle, Middle Voicing Switch, Treble, Tilt Control, Master Volume |
| EQ: Preshape, Bass (±12 dB), Middle (±12 dB) with Four Switchable Voicing Options, Treble (±12 dB), Tilt Control |
| Indicators: Power LED |
| Remote: 6.3 mm (1/4") Jack Socket for Optional FS1-Mini Footswitch (Not Included) for Channel Switching |
| Enclosure: Precision-Crafted 15 mm Plywood Cabinet |
| Handles: Top-Mounted Steel-Reinforced Strap Handle |
| Finish: Hard-Wearing Black Vinyl, Steel Corners |
| Power Supply: Internal Universal 100–200V~ 50/60 Hz Switched-Mode Power Supply, IEC C14 Inlet Connector |
| Power Consumption: Typical 150W, Maximum 365W |
| Package Contents |
|---|
|
Built with gigging musicians in mind, the DBF200H offers a 200W power rating in a compact head format, providing a practical solution for bass players seeking power without unnecessary bulk. Its vintage-inspired appearance complements its modern functionality, while the portable design makes transportation between venues and practice spaces easier. Combining power, portability, and versatile design, the DBF200H is built to meet the needs of performing bassists.
