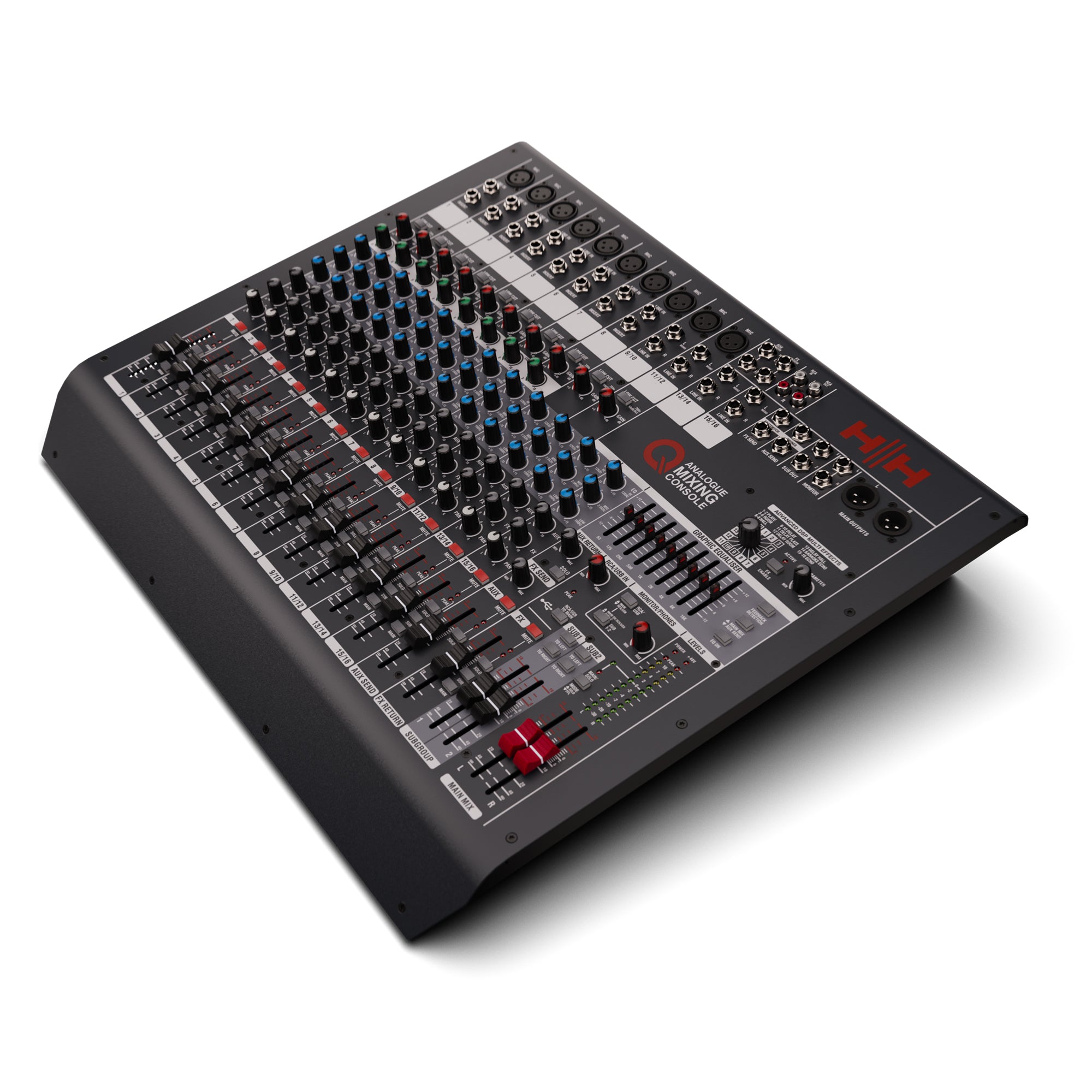

HH Q16FX – 16-Channel Analogue Mixer
BRITISH-ENGINEERED Q SERIES DESIGN — The Q16FX is part of Studiomaster's Q Series, delivering decades of British desi...
Read More
Couldn't load pickup availability
BRITISH-ENGINEERED Q SERIES DESIGN — The Q16FX is part of Studiomaster's Q Series, delivering decades of British design and engineering excellence across live sound, recording, and podcasting applications.
10 MIC INPUTS WITH GLOBAL PHANTOM POWER — Features 10 low-noise mic preamps and a global +48V phantom power switch, providing clean and reliable signal capture for condenser and dynamic microphones alike.
SINGLE-KNOB COMPRESSION ON 8 CHANNELS — Channels 1–8 include built-in compressors with LED indicators, offering intuitive dynamic control across a wider range of channels compared to smaller Q Series models.
16-PROGRAM DSP EFFECTS ENGINE — The onboard DSP unit delivers 16 effects programs with parameter adjustment, bringing professional-grade reverb and depth to live performances and studio sessions.
USB 2-IN/2-OUT FOR RECORDING & PODCASTING — The integrated USB interface supports 2-in/2-out audio at up to 24-bit/48kHz, making the Q16FX ideal for music production, live event recording, and podcast workflows.
| Product Details | |
|---|---|
| Barcode | 5060109459050 |
| Model | Q16FX |
| Country of Origin | China |
| Color | Black |
| Dimensions | 50.95 × 10.7 cm |
| Item Weight | 7.5 |
| Series | Q Series |
| Tech Specs |
|---|
| Channels: 16 |
| Mono Inputs (Mic): 10 |
| Mono Inputs (Line): 8 |
| Stereo Inputs (Line): 4 |
| Insert Lines: 8 |
| Channel EQ: 3 Band |
| Compressors: CH 1–8 with indicator |
| Phantom Power: Global switch, +48V |
| Main Outs: Stereo balanced XLR sockets |
| Sub Groups: 2 |
| Phones: Yes (1/4-Inch 6.3mm TRS) |
| Master EQ: 9 Band |
| Aux: 2 |
| FX: 16 Program DSP with Parameter Adjustment |
| USB: 2In/2Out |
| Master Faders: 60mm L + R |
| Meters: 12 Point LED |
| USB Audio: 2-in, 2-out, 16-bit, 24-bit, Sampling rate: 48kHz (Type B Connector) |
| AC Power: Universal 100–240V~ 50/60Hz (IEC C14 Socket, AC Cord included) |
| Power Consumption: 40W |

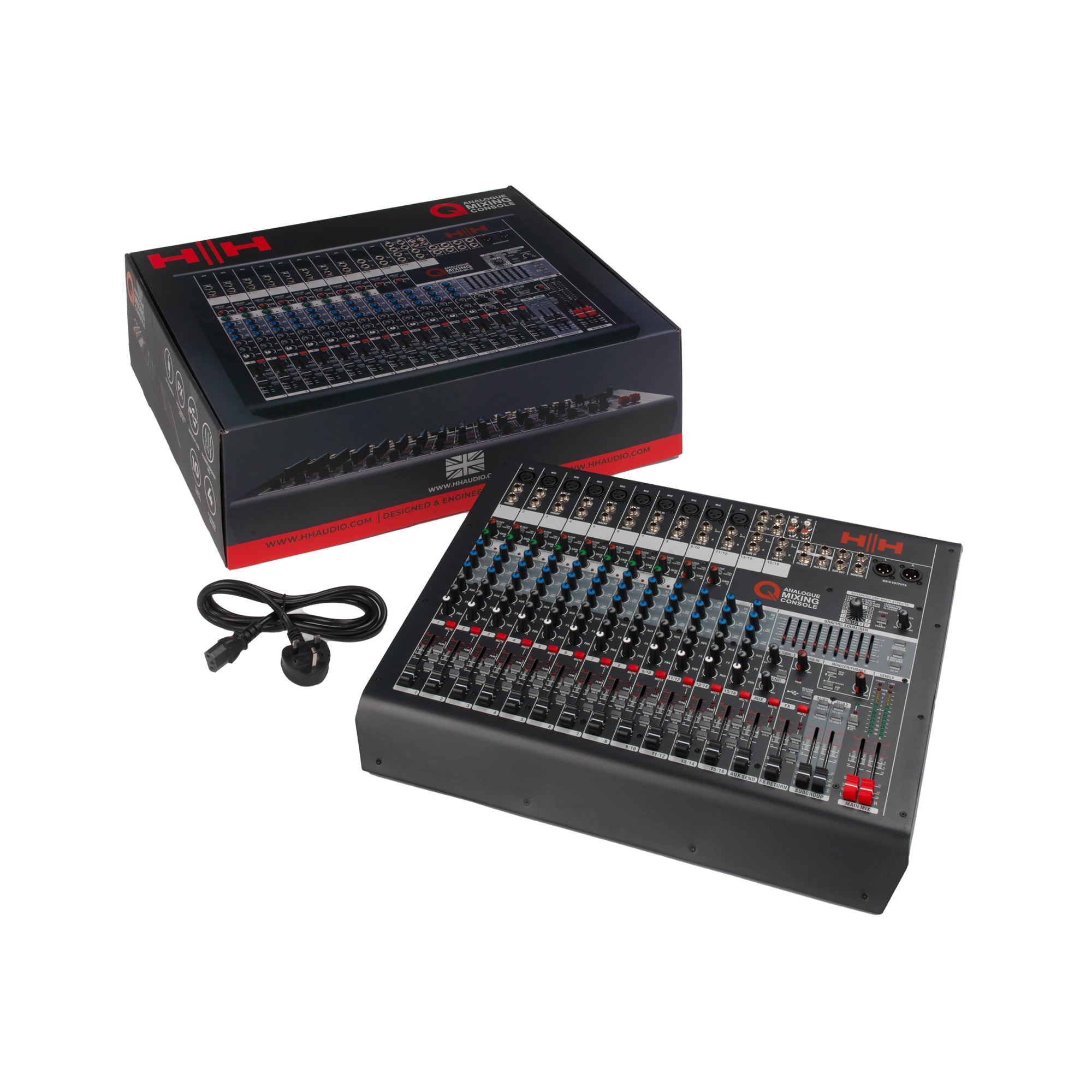

| Package Contents |
|---|
|

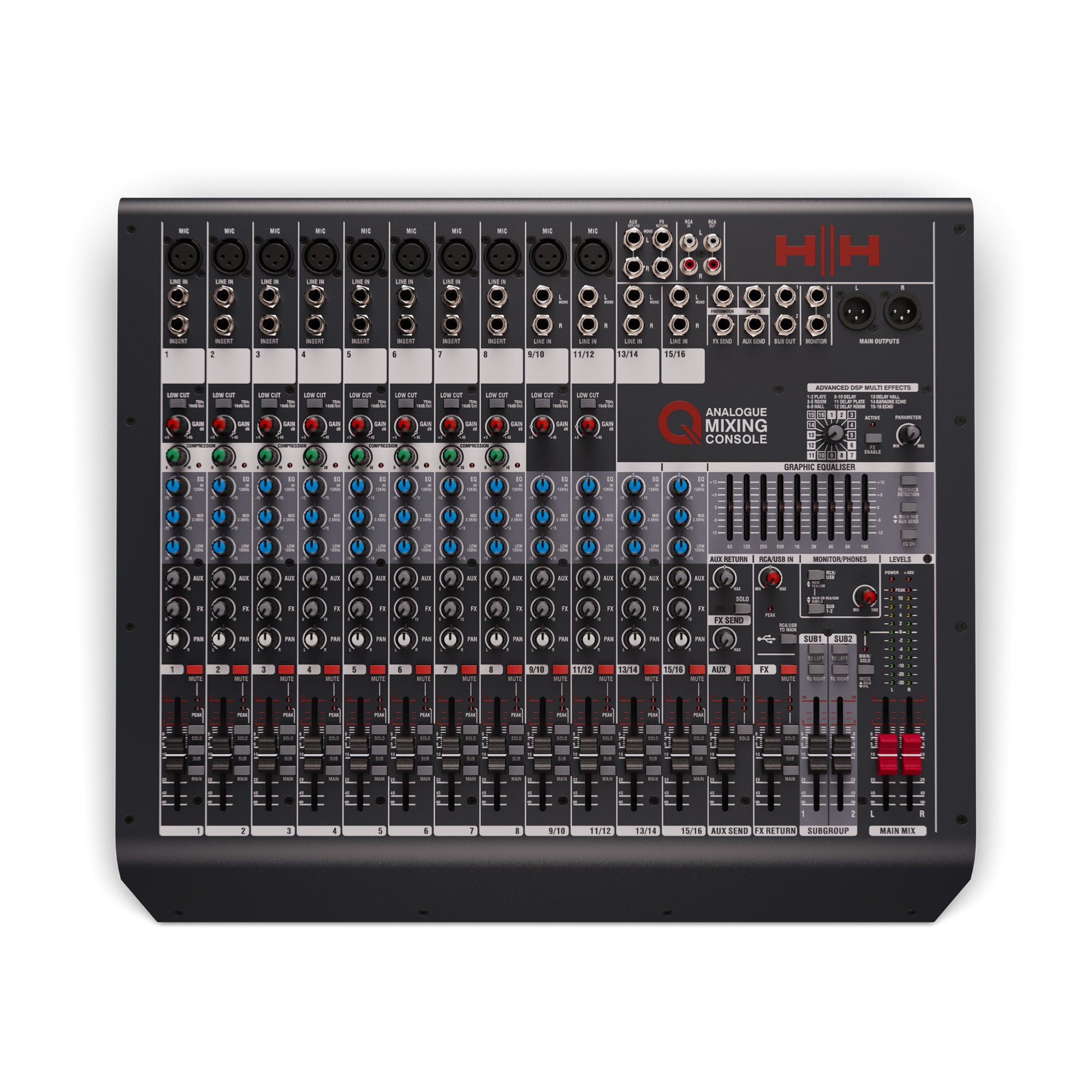

The Q16FX accommodates 10 mono mic inputs, 8 mono line inputs, and 4 stereo line inputs, offering extensive connectivity for complex live setups. All channels are equipped with 3-band EQ for precise tonal control, while channels 1 through 8 benefit from single-knob compressors with LED indicators — double the compression coverage of the Q12FX. The 9-band master EQ provides additional overall mix shaping at the output stage.
The built-in 16-program DSP effects engine with parameter adjustment delivers high-quality reverb, delay, and spatial effects without requiring external processors. Two aux sends, 2 sub groups, and a headphone output ensure flexible monitoring and routing for demanding live applications.
The onboard USB 2-in/2-out interface running at 24-bit/48kHz enables direct recording to a computer, making the Q16FX an equally capable tool for podcasting, home studio production, and capturing live performances with professional clarity.
